Description

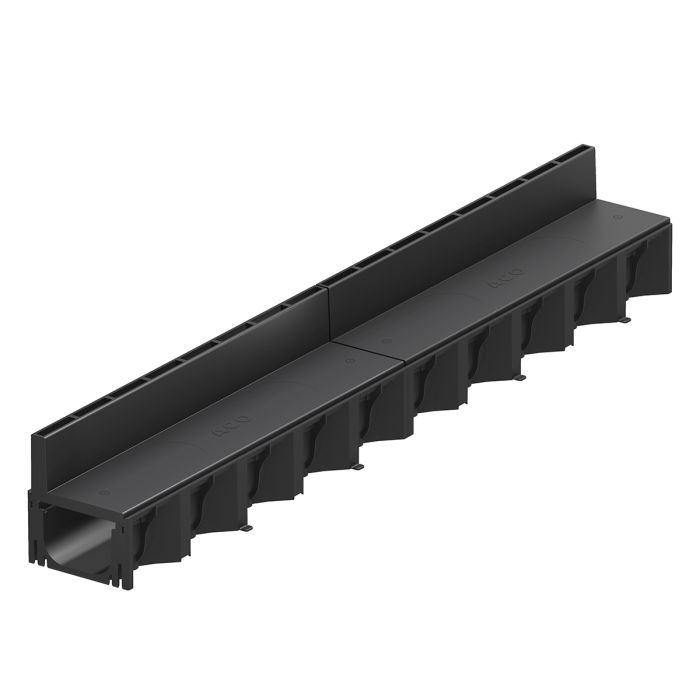

Set of drainage channel type ACO 2.0 CONJUNTO H138 in Polypropylene with grating type brickslot L in Polypropylene with load class A15 according to EN1433 color black. With locking system by clip. Internal section 46 cm². Grating absortion area of 90 cm²/m. Total lenght 1000, overall heigth 138 mm and overall width 129 mm. Nominal width 87,5 mm. Weight: 1,6 kg.
Technical Specifications

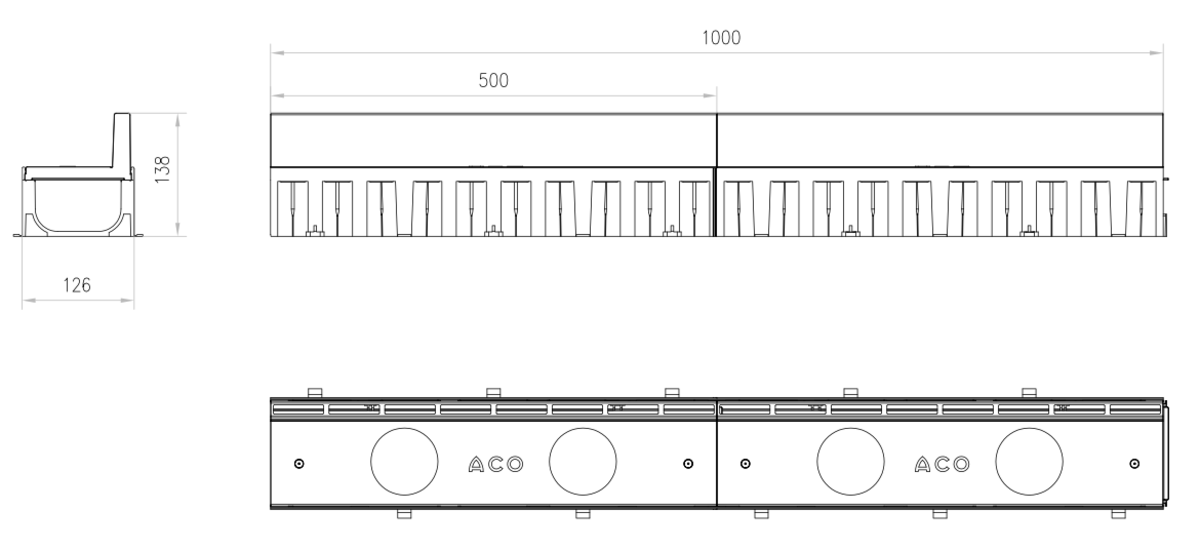

Dimensions
- Internal section (cm²):
- 46
- Model:
- HEXALINE 2.0
- Length (mm):
- 1000
- Width (mm):
- 129
- Height (mm):
- 138
- Weight (kg):
- 1,6
- Intake area (cm2/m):
- 90
- Load class:
- A15
- Flow rate (l/s):
- 1,55
- Shipment:
- Assembled set
