Description
Set of drainage channel type ACO 2.0 CONJUNTO H82 in Polypropylene with grating type slotted in Polypropylene with load class A15 according to EN1433 color black. With locking system by clip. Internal section 46 cm². Grating absortion area of 254 cm²/m. Total lenght 1000, overall heigth 82 mm and overall width 129 mm. Nominal width 88 mm. Weight: 1,4 kg.
Technical Specifications

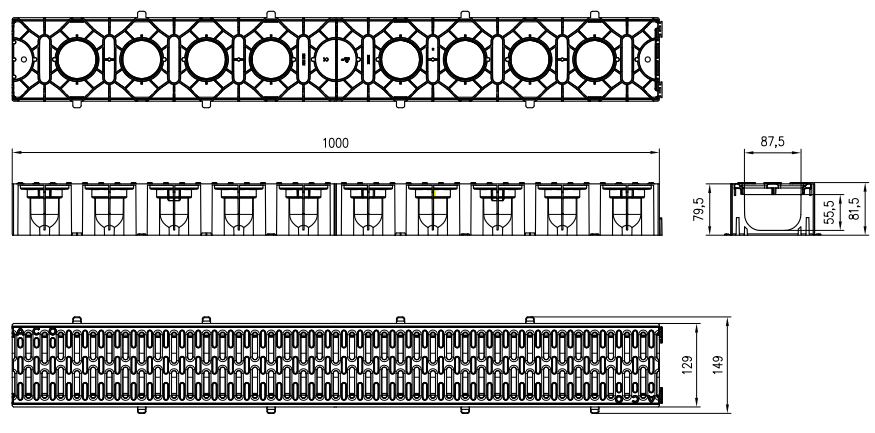

Dimensions
- Model:
- HEXALINE 2.0
- Length (mm):
- 1000
- Width (mm):
- 129
- Height (mm):
- 82
- Weight (kg):
- 1,4
- Intake area (cm2/m):
- 254
- Load class:
- A15
- Flow rate (l/s):
- 1,55
- Internal section (cm²):
- 46
- :
