GRATE MD/ML/XD 150 L499 D400 Fº DUNE® W/FIX DRAINLOCK®

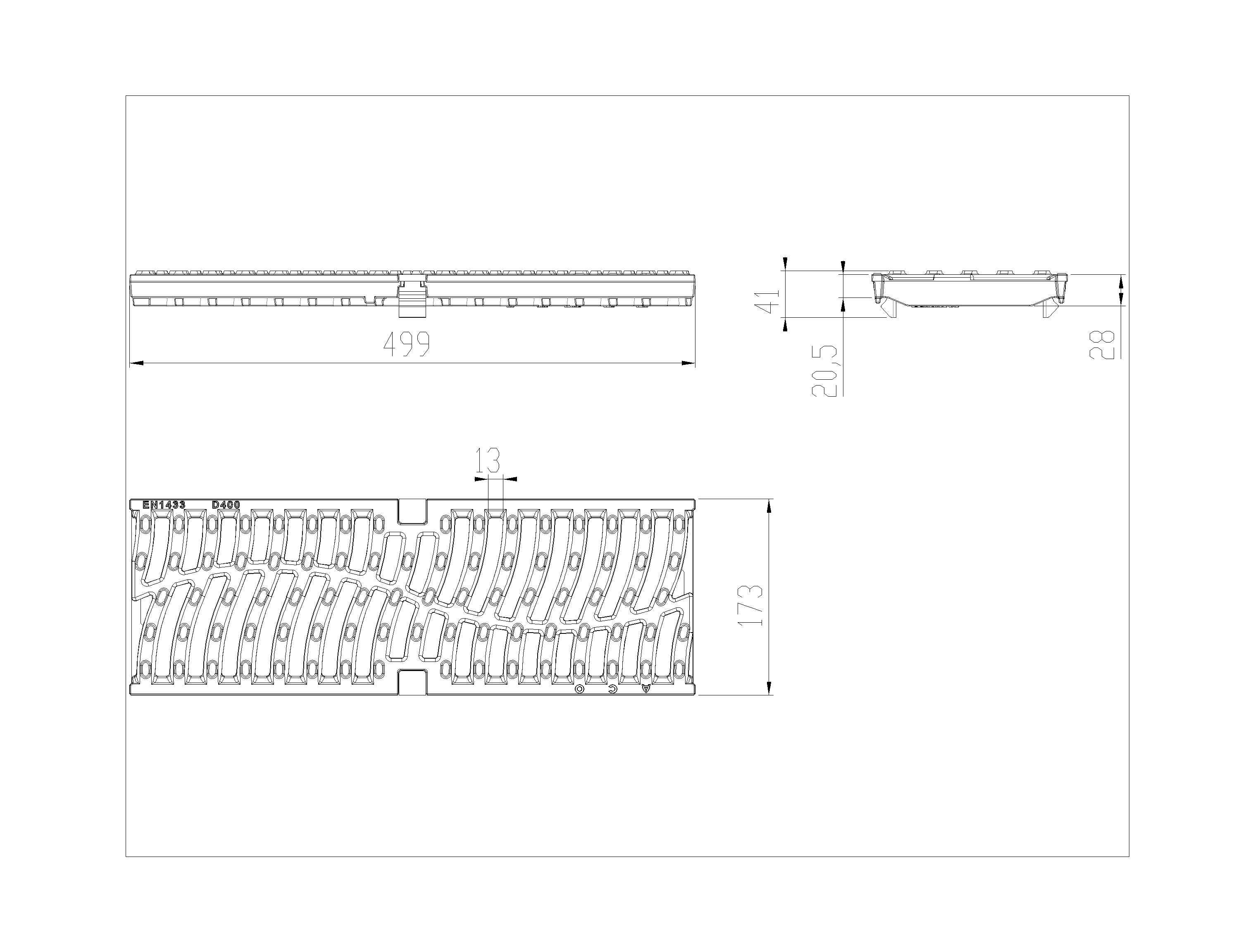

Grate type DUNE® in cast iron, with load class D400 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 150. Locking system by Drainlock®. Intake area of 539 cm²/m. Lenght overall 499 mm, external height 20,5 mm and external width 173 mm. Unit weight: 6,60 kg.
