Description

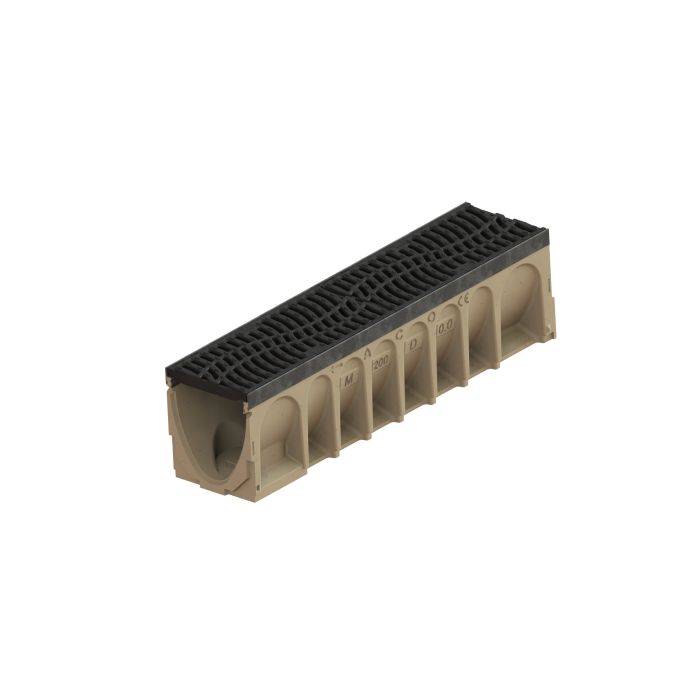

Set of drainage channel type ACO MULTIDRAIN 200 H265 in polymer concrete with grating type DUNE® in cast iron with load class C250 according to EN1433. With locking system by Drainlock®. Internal section 310 cm². With vertical preformed DN/OD 160. Grating absortion area of 710 cm²/m. Total lenght 1000, overall heigth 265 mm and overall width 235 mm. Nominal width 200 mm. Weight: 55,04 kg.
Technical Specifications

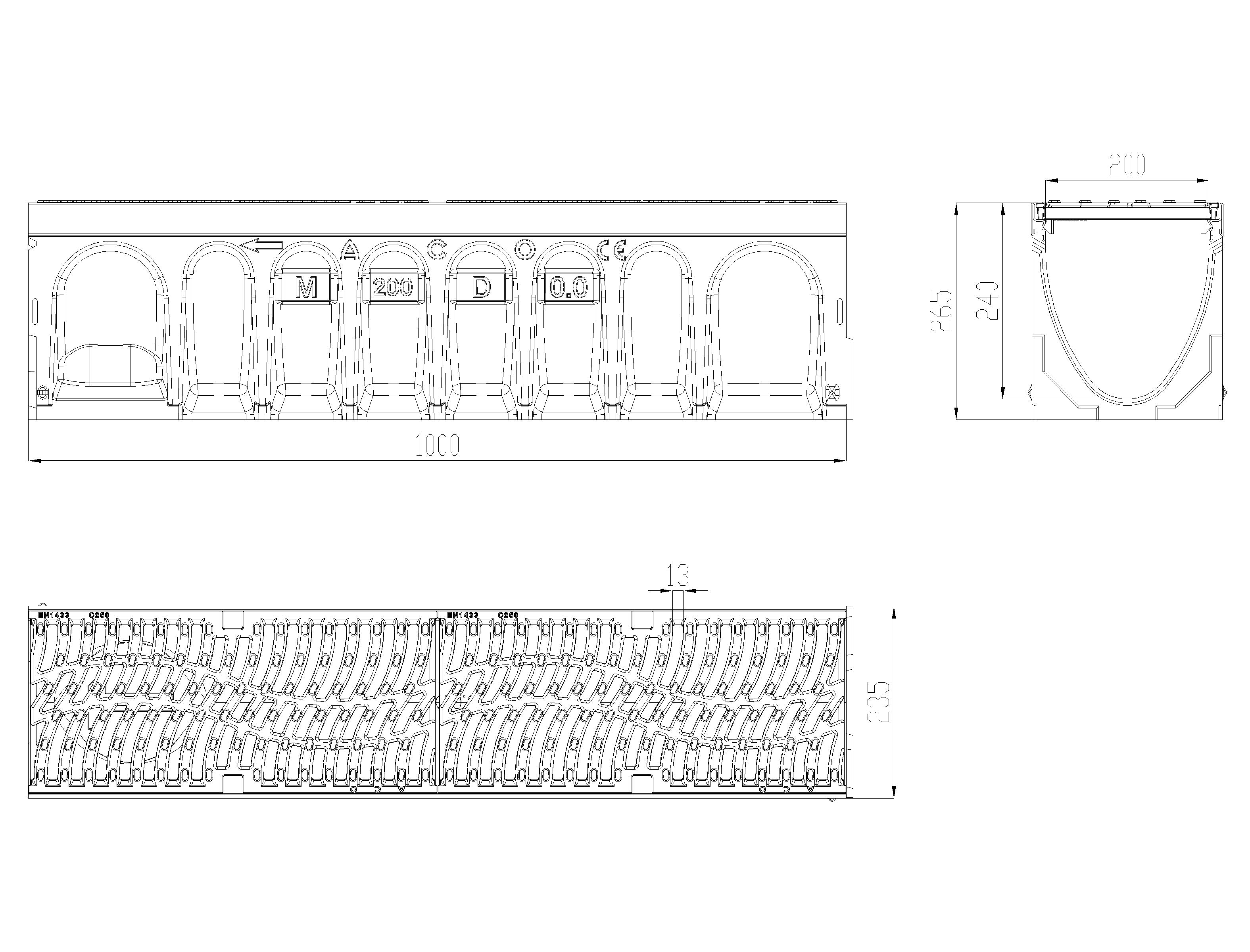

Dimensions
- Model:
- MULTIDRAIN 200
- Length (mm):
- 1000
- Width (mm):
- 235
- Height (mm):
- 265
- Weight (kg):
- 55,04
- Intake area (cm2/m):
- 710
- Internal section (cm²):
- 310
- Preformed:
- DN/OD 160
- Locking system:
- Drainlock®
- Load class:
- C250
- Flow rate (l/s):
- 18,5
