CNL S 400 1000MM H469 DN/OD 200 F900 W/GR PAS CAST IRON

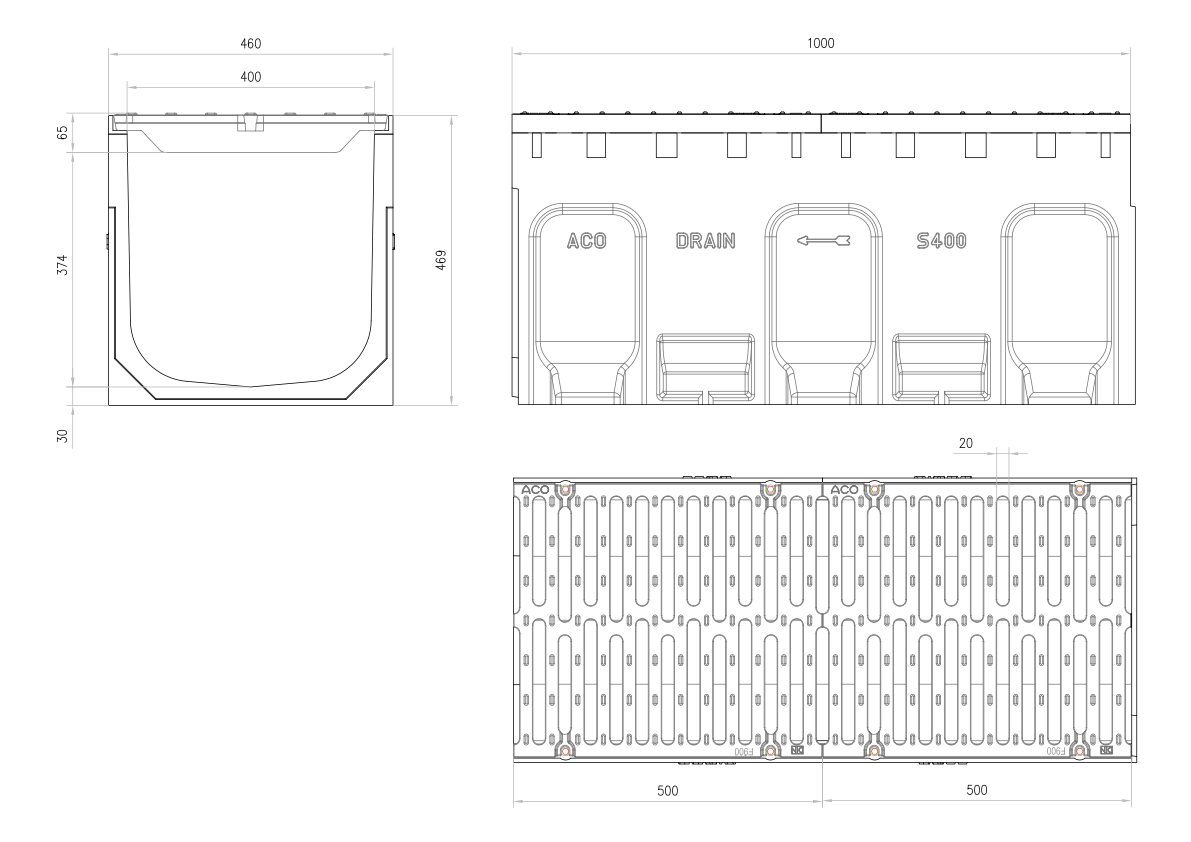

Draianage channel ACO S 400 H469 of polymer concrete, with grate type slotted of cast iron of load class F900 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 200. With an inner section of 1564 cm² and U-shaped cross-section. Grate absorption area of ​​1750 cm²/m. Total length 1000 mm, outer height 469 mm and outer width 460 mm. Nominal inner width 400 mm. Weight: 170 kg.
Item:00301858
