CNL S 400 1000MM H469 DN/OD 200 E600 W/GR CIEGA CAST IRON

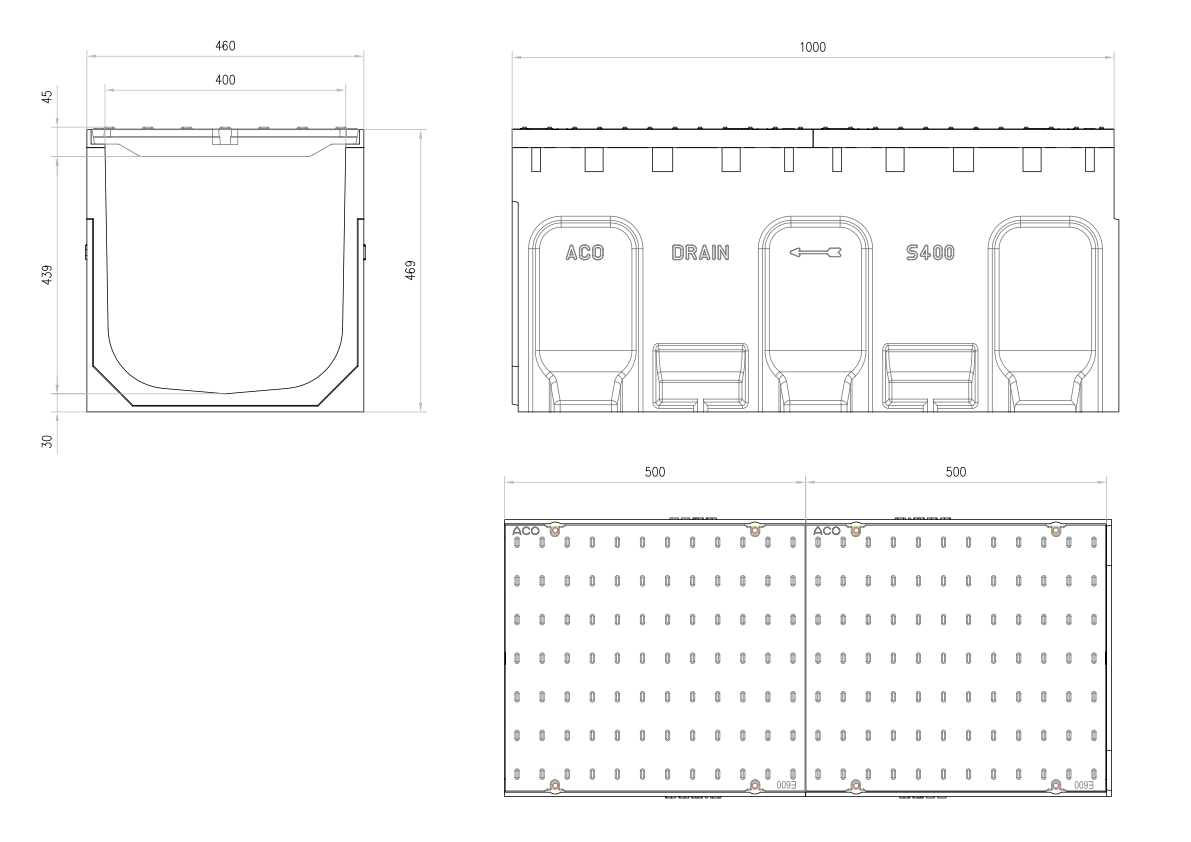

Draianage channel ACO S 400 H469 of polymer concrete, with grate type solid of cast iron of load class E600 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 200. With an inner section of 1564 cm² and U-shaped cross-section. Total length 1000 mm, outer height 469 mm and outer width 460 mm. Nominal inner width 400 mm. Weight: 156,3 kg.
Item:00301515
