CNL S 500 1000MM H560 DN/OD 200 D400 W/GR PAS CAST IRON

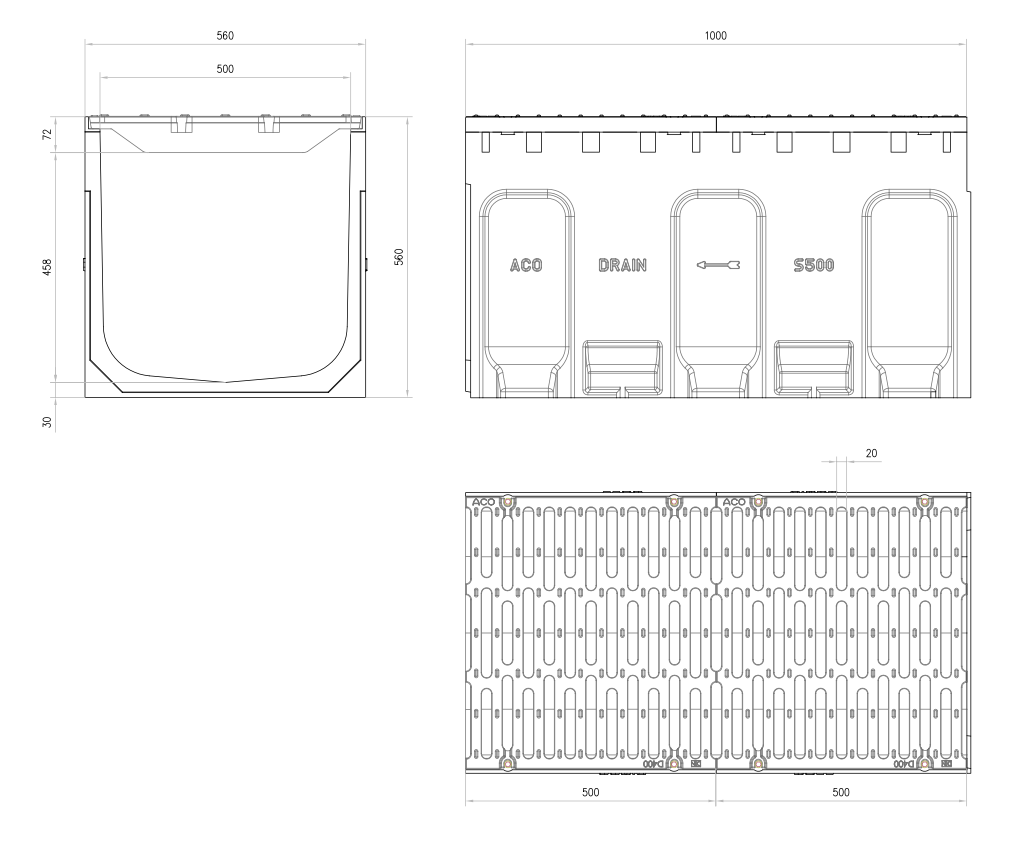

Draianage channel ACO S 500 H560 of polymer concrete, with grate type slotted of cast iron of load class D400 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 200. With an inner section of 2400 cm² and U-shaped cross-section. Grate absorption area of ​​2090 cm²/m. Total length 1000 mm, outer height 560 mm and outer width 560 mm. Nominal inner width 500 mm. Weight: 196 kg.
Item:00301514
