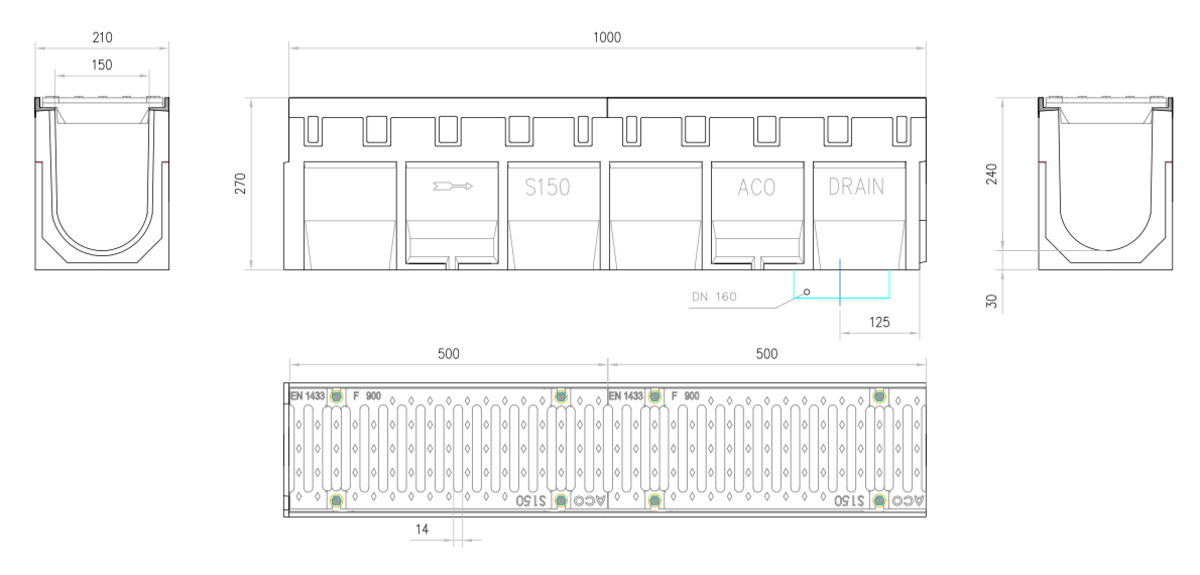

CNL S 150 10.0 1000MM H270 DN/OD 160 D400 W/GR PAS CAST IRON

Draianage channel ACO S 150 H270 of polymer concrete, with grate type slotted of cast iron of load class D400 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 160. With an inner section of 294 cm² and U-shaped cross-section. Grate absorption area of ​​638 cm²/m. Total length 1000 mm, outer height 270 mm and outer width 210 mm. Nominal inner width 150 mm. Weight: 49,8 kg.
Item:00150511
