CNL S 100 1000MM H250 DN/OD 110 D400 W/GR PAS CAST IRON

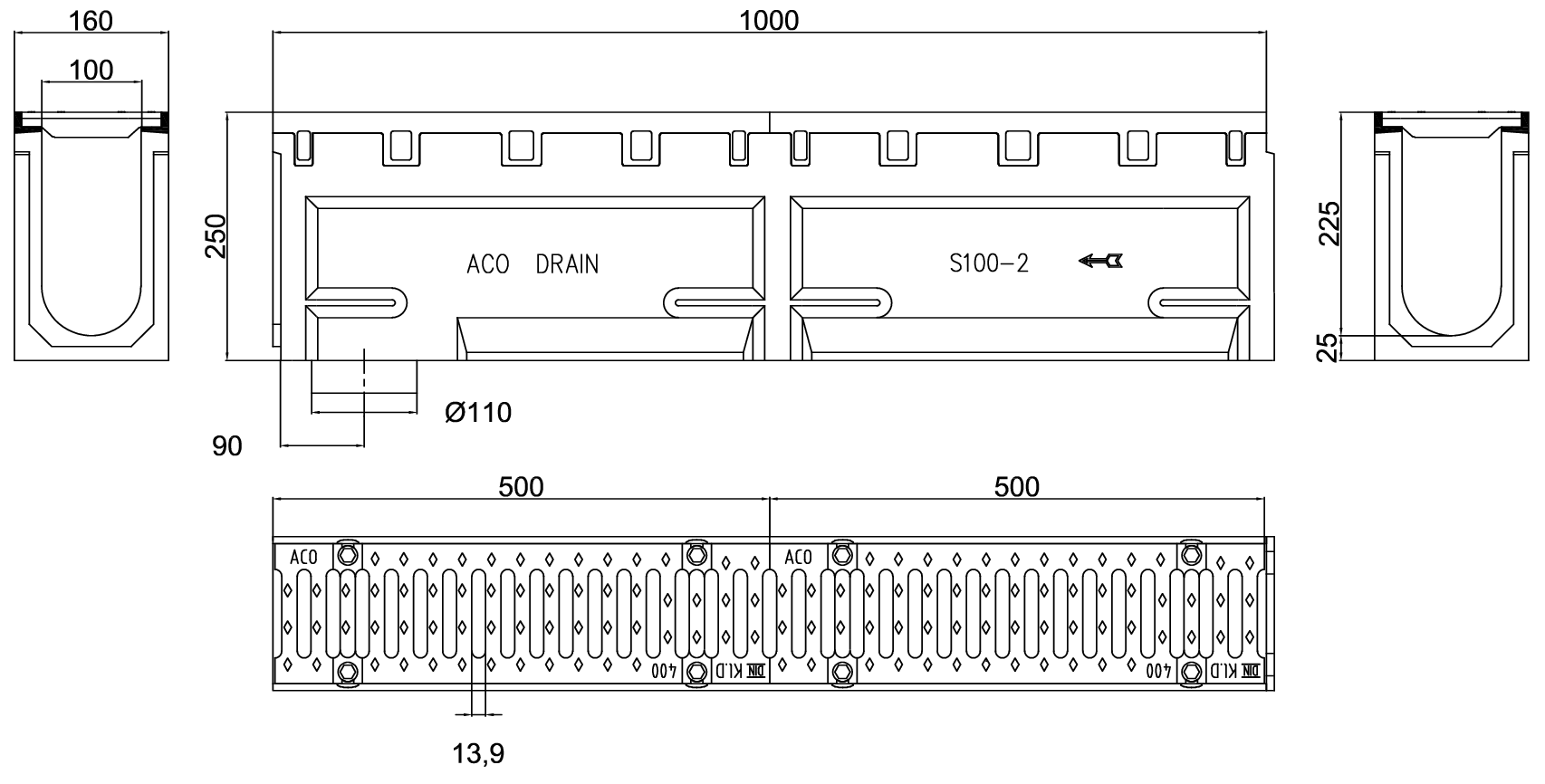

Draianage channel ACO S 100 H250 of polymer concrete, with grate type slotted of cast iron of load class D400 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 110. With an inner section of 200 cm² and U-shaped cross-section. Grate absorption area of ​​322 cm²/m. Total length 1000 mm, outer height 250 mm and outer width 160 mm. Nominal inner width 100 mm. Weight: 38,6 kg.
Item:00150501
