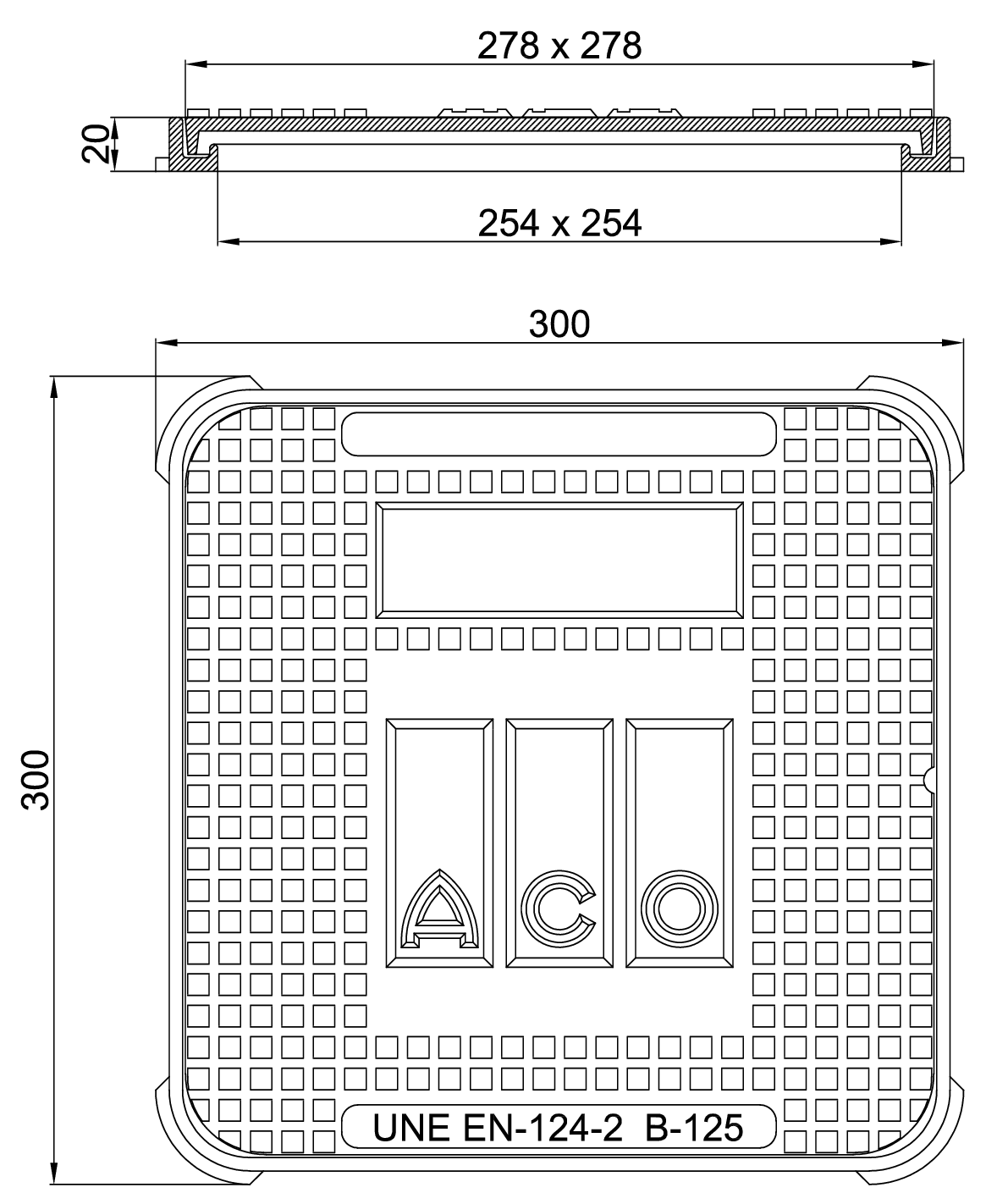

Description
ACO GUSS I-BASIC square C cover for service shafts, made in ductile cast iron with load class B125 according to UNE EN 124, with cast iron square frame. Embossed surface. With hole for extraction. With straight upper angle for fixed placement. With instription 1 available, with inscription 2 Not Available.
Technical Specifications
Dimensions
- Upper inscription:
- available
- Lower inscription:
- Not Available
- H frame height (mm):
- 20
- Load class:
- B125
- Model:
- I-BASIC
- Material:
- fº
- external dimensions (mm):
- 305x305
- Clear opening dimensions (mm):
- 257x257
- External cover dimensions (mm):
- 280x280
- visible frame dimensions (mm):
- 295x295
