Description

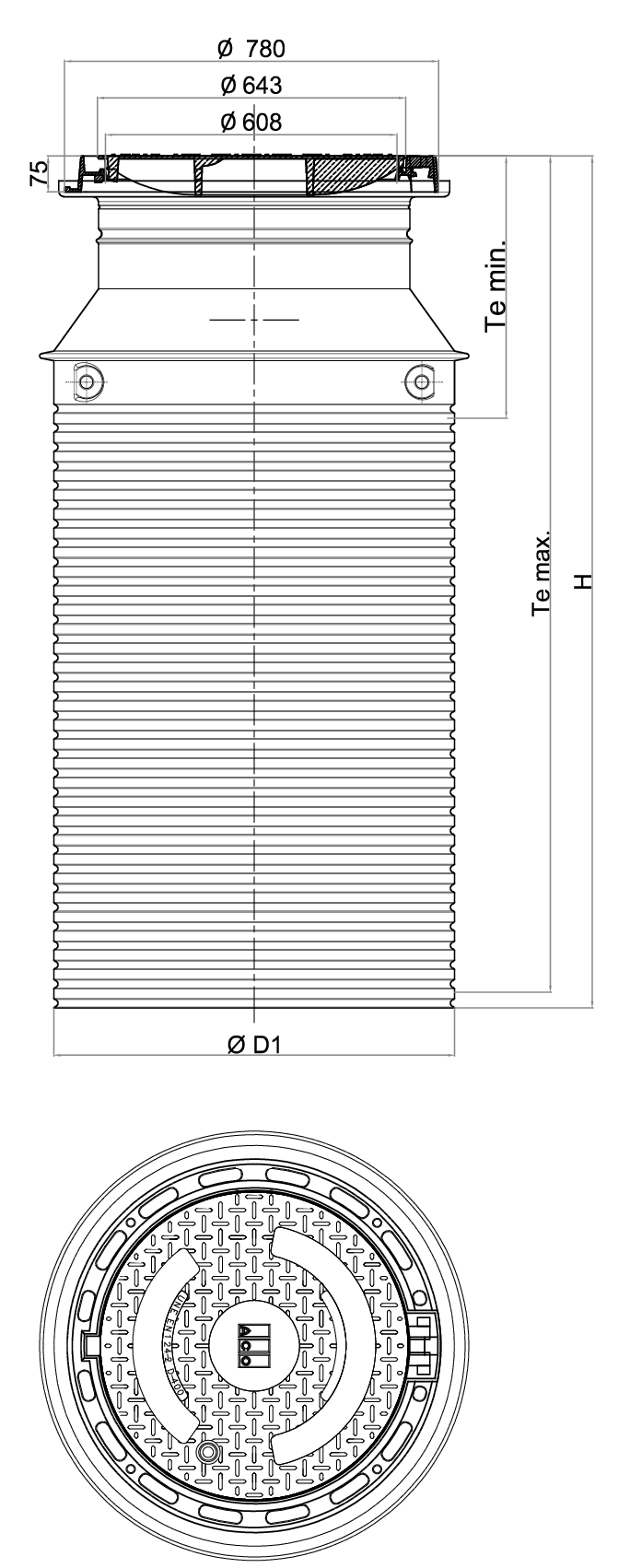

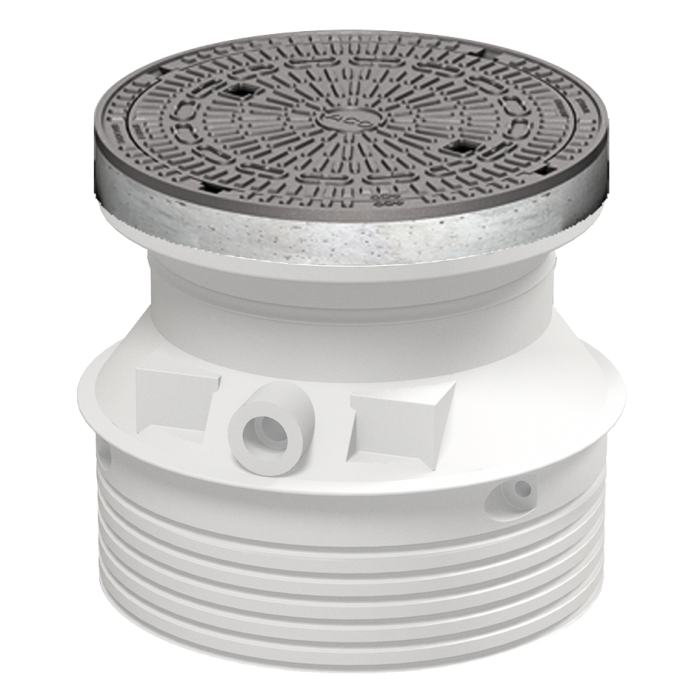

Cover type ajustable in cast iron with long rising piece in high-density polyethylene gray with external height 1777 mm and dimension Te 537-1764 mm. With 1cover load class D400 according to EN124. Requiere slab on installation. Weight: 104 kg.
Technical Specifications
Dimensions
- Cover material:
- cast iron
- Rising piece:
- high-density polyethylene
- ØD1 (mm):
- 836
- Covers (mm):
- 1xØ600
- H (mm):
- 1777
- Te min (mm):
- 537
- Te max (mm):
- 1764
- Load class:
- D400
- Weight (kg):
- 104
- Cover color:
- black
- Rising piece color:
- gray
