GRATE N/SELF N150/SELF200 L1000 A15 AISI304 SLOTTED ANTIT C/FIX SPRINGLOCK®
00150013
140,98 €
Description

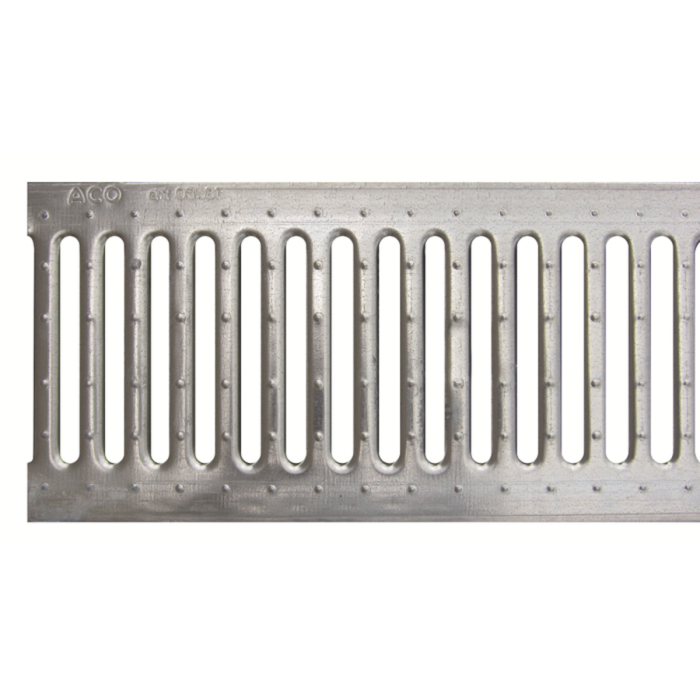

Grate type heelsafe slotted in stainless steel AISI 304, with load class A15 in accordance with EN1433, for surface drainage channels type ACO N/SELF N150/SELF200. Locking system ACO Drainlock®. Intake area of 544,3 cm²/m. Lenght overall 1000 mm, external height 22 mm and external width 200 mm. Unit weight: 3,5 kg.
Technical Specifications

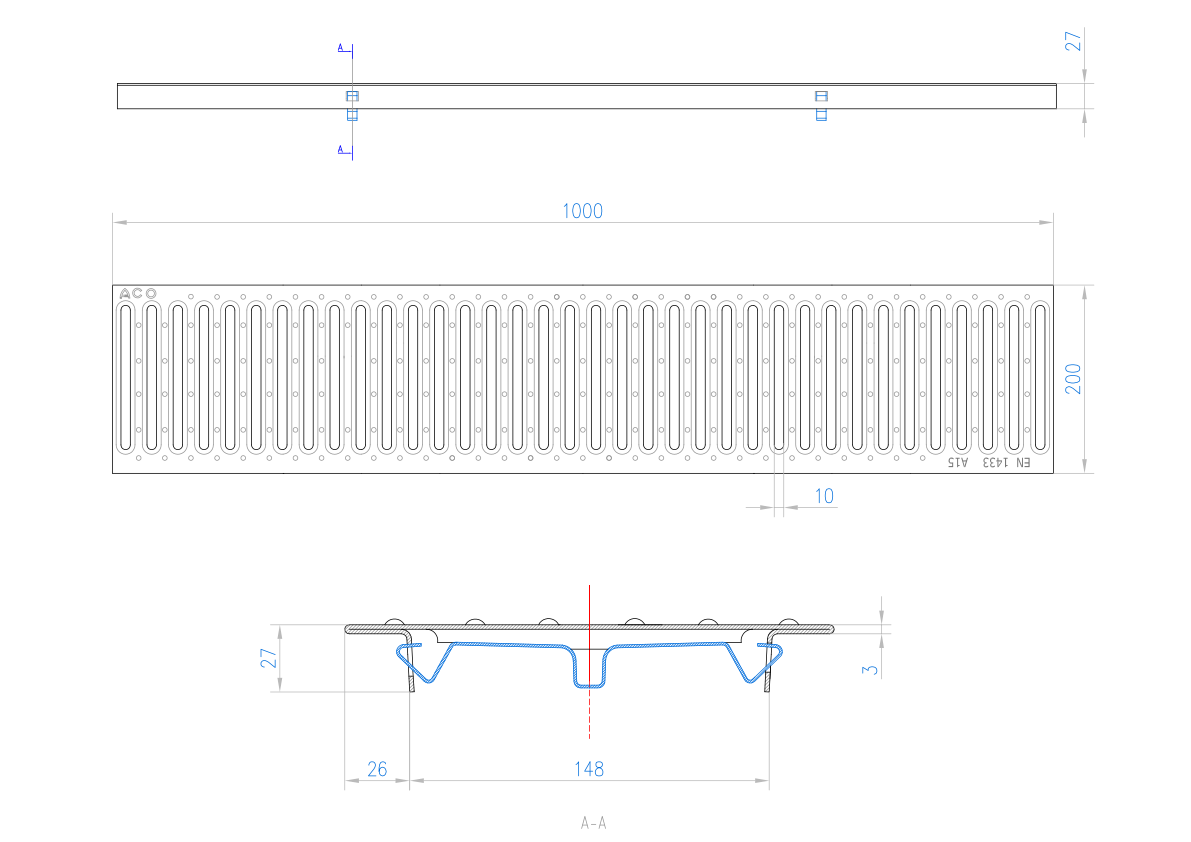

Dimensions
- Model:
- N/SELF N150/SELF200
- Length (mm):
- 1000
- Width overall (mm):
- 200
- Total height (mm):
- 22
- Weight (kg):
- 3,5
- Intake area (cm²/m):
- 544,3
- Load Class:
- A15
