GRATE N/SELF N150/SELF200 L1000 B125 AºGº MESH 30X30 C/FIX SPRINGLOCK®
00150011
69,18 €
Description

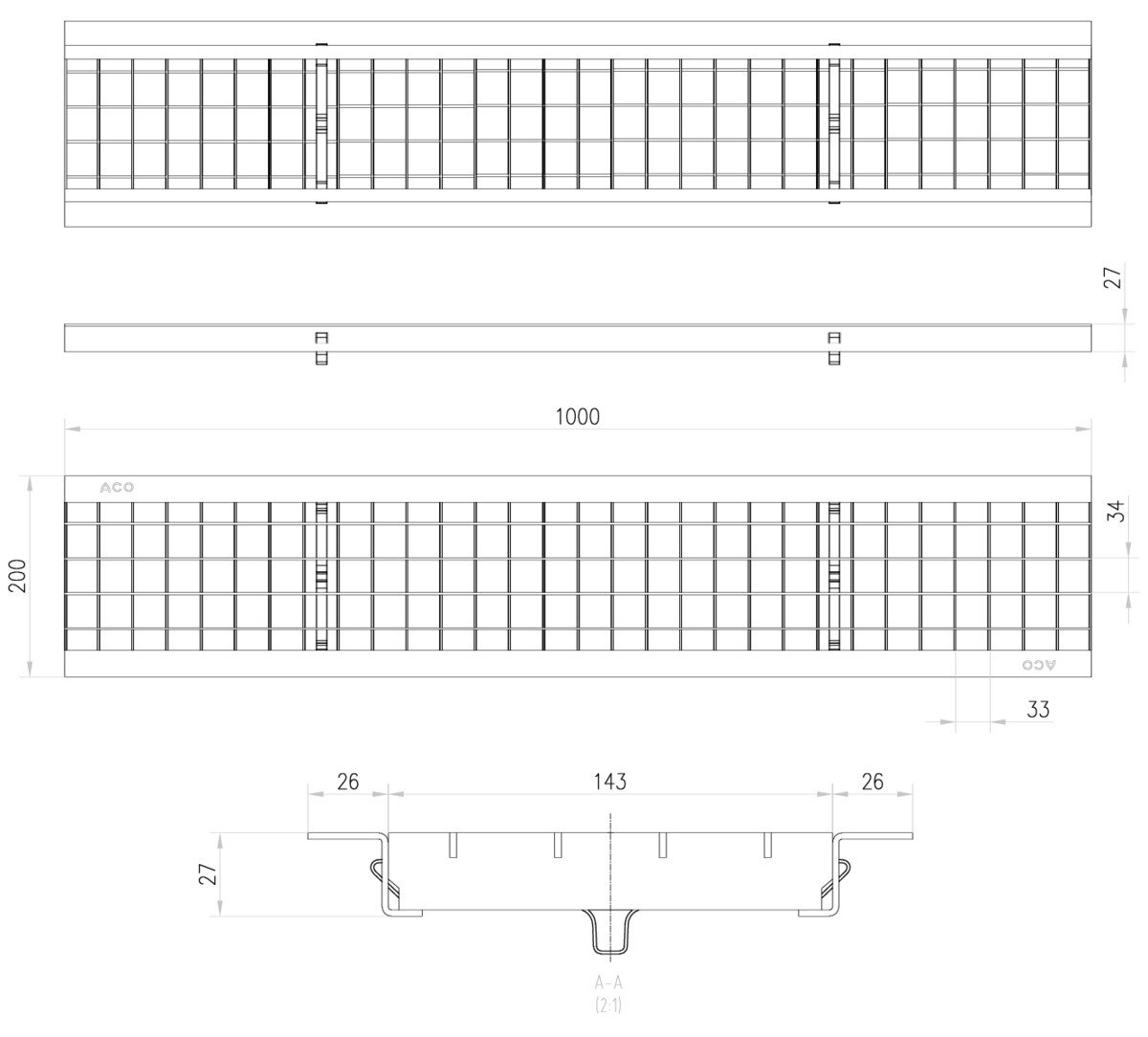

Grate type mesh in galvanised steel, with load class B125 in accordance with EN1433, for surface drainage channels type ACO N/SELF N150/SELF200. Locking system ACO Drainlock®. Intake area of 1207,2 cm²/m. Lenght overall 1000 mm, external height 27 mm and external width 200 mm. Unit weight: 4,3 kg.
Technical Specifications
Dimensions
- :
- :
- :
- :
- :
- :
- :
Technical datasheets
Manuals and installation sections
