Description

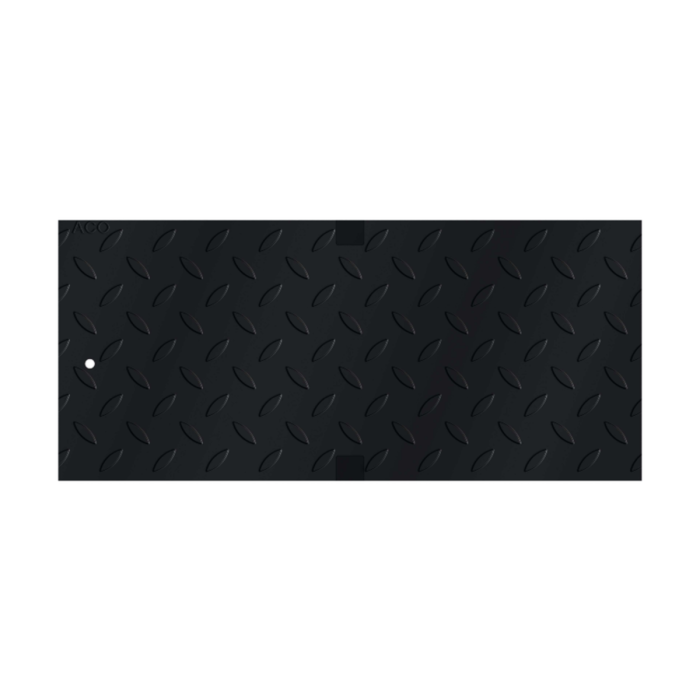

Grate type solid in cast iron, with load class E600 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 200. Locking system by Drainlock®. Lenght overall 500 mm, external height 21 mm and external width 223 mm. Unit weight: 12,6 kg.
Technical Specifications

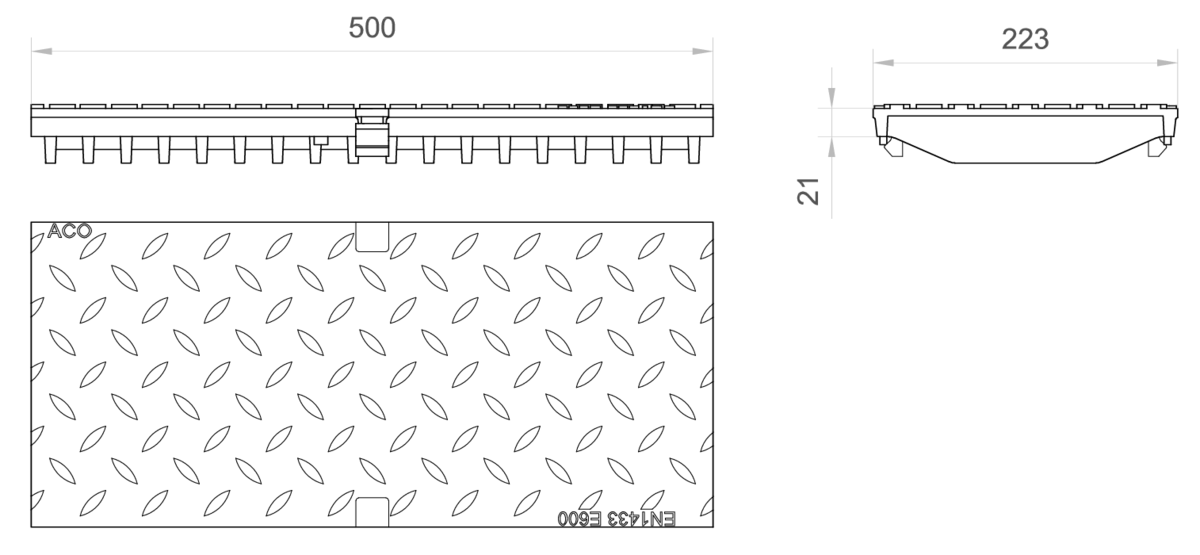

Dimensions
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 200
- Length (mm):
- 500
- Width overall (mm):
- 223
- Total height (mm):
- 21
- Weight (kg):
- 12,6
- Load Class:
- E600
- Total external height (mm):
- 45
