CNL ML SEAL IN V200 6 1000MM H290-295 E600

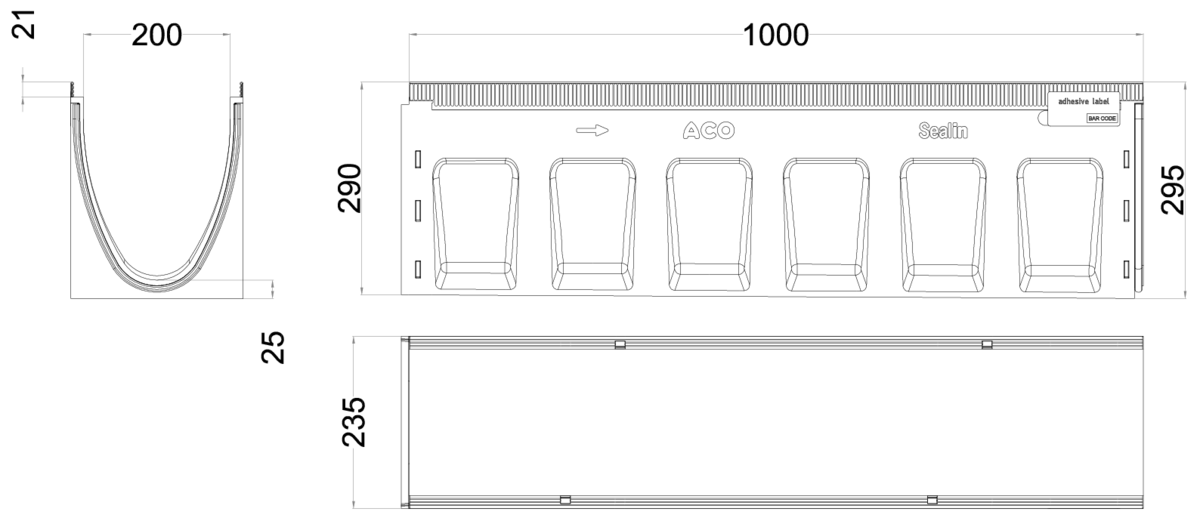

Surface drainage channel type ACO MULTILINE SEAL IN V200G 6 H290 in polymer concrete with integrated EPDM seal for wather tight instalation, according to IKT certification. Without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. With V-shape optimized transverse section. Total length 1000 mm, height overall 290 mm and total width 235 mm. Nominal width 200 mm. Weight: 44 kg.
