CNL ML SEAL IN V150 10.1 500MM H260 E600

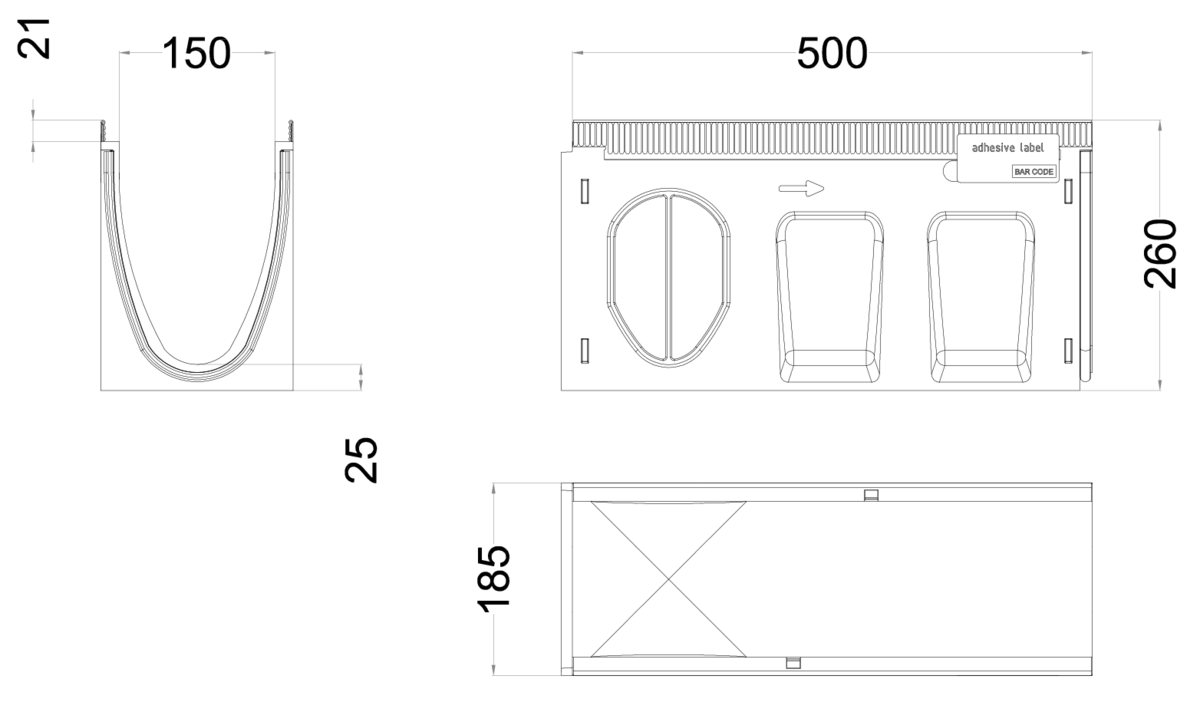

Surface drainage channel type ACO MULTILINE SEAL IN V150G 10.1 H260 in polymer concrete with integrated EPDM seal for wather tight instalation, according to IKT certification. Without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. With V-shape optimized transverse section. Total length 500 mm, height overall 260 mm and total width 185 mm. Nominal width 150 mm. Weight: 16,5 kg.
