CNL ML SEAL IN V150 5.0 1000MM H235 E600

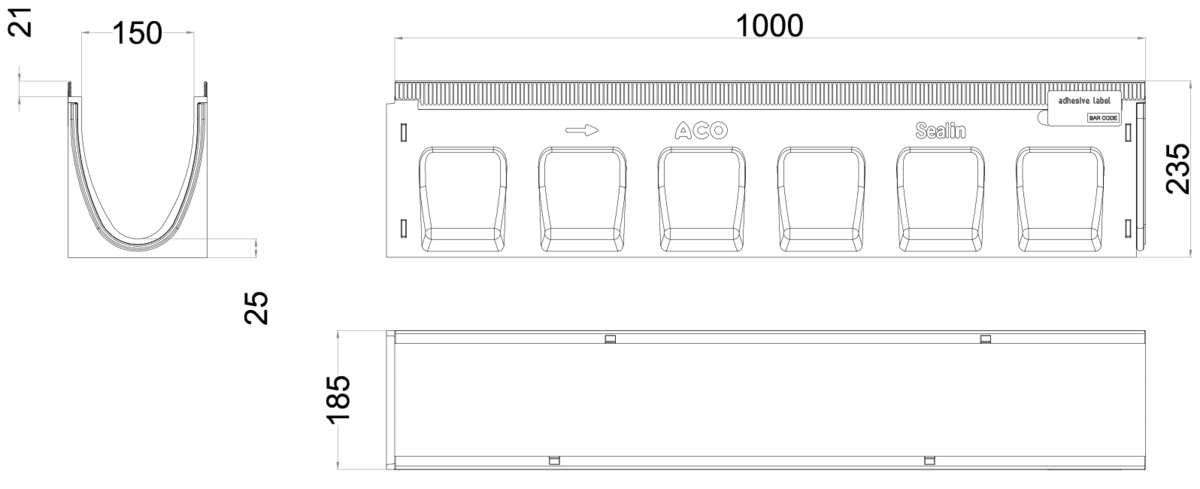

Surface drainage channel type ACO MULTILINE SEAL IN V150G 5.0 H235 in polymer concrete with integrated EPDM seal for wather tight instalation, according to IKT certification. Without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. With V-shape optimized transverse section. Total length 1000 mm, height overall 235 mm and total width 185 mm. Nominal width 150 mm. Weight: 31,9 kg.
