GRATE MD/ML/XD 100 L500 E600 Fº PAS W/FIX DRAINLOCK®

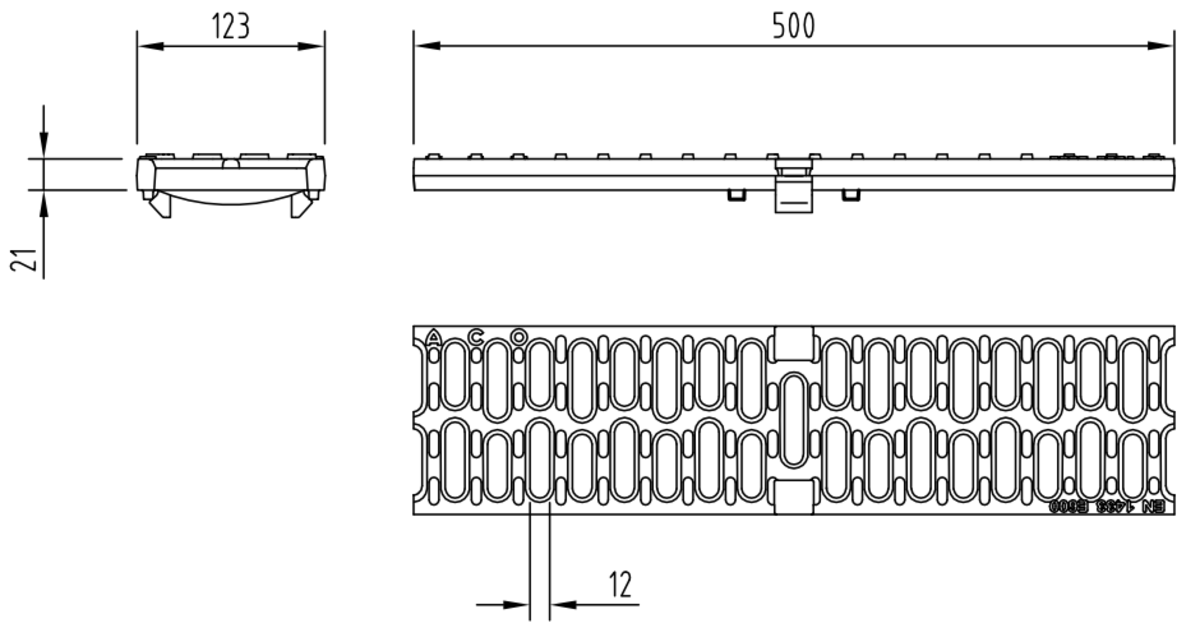

Grate type slotted in cast iron, with load class E600 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 100. Locking system by Drainlock®. Intake area of 371 cm²/m. Lenght overall 500 mm, external height 21 mm and external width 123 mm. Unit weight: 4,1 kg.
