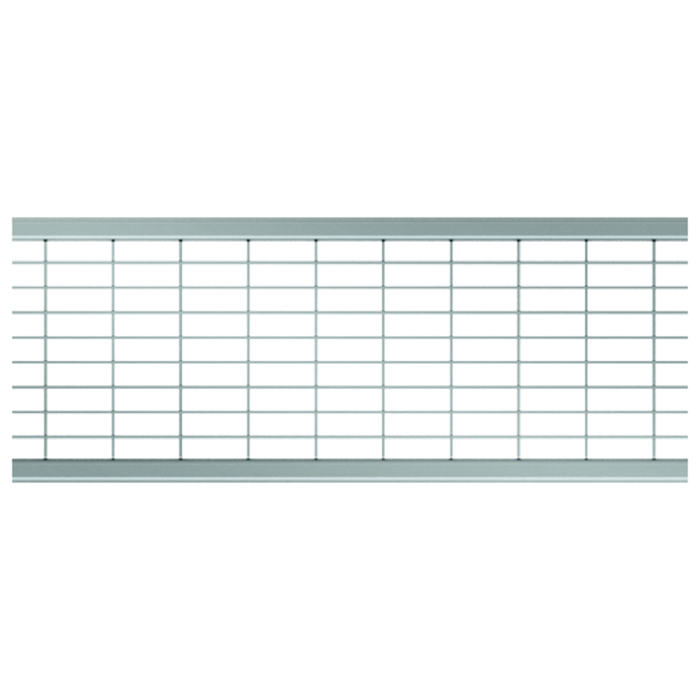

GRATE MD/ML/XD 100 L1000 B125 AISI304 ENT Q+ 29,7X9,8 W/FIX DRAINLOCK®

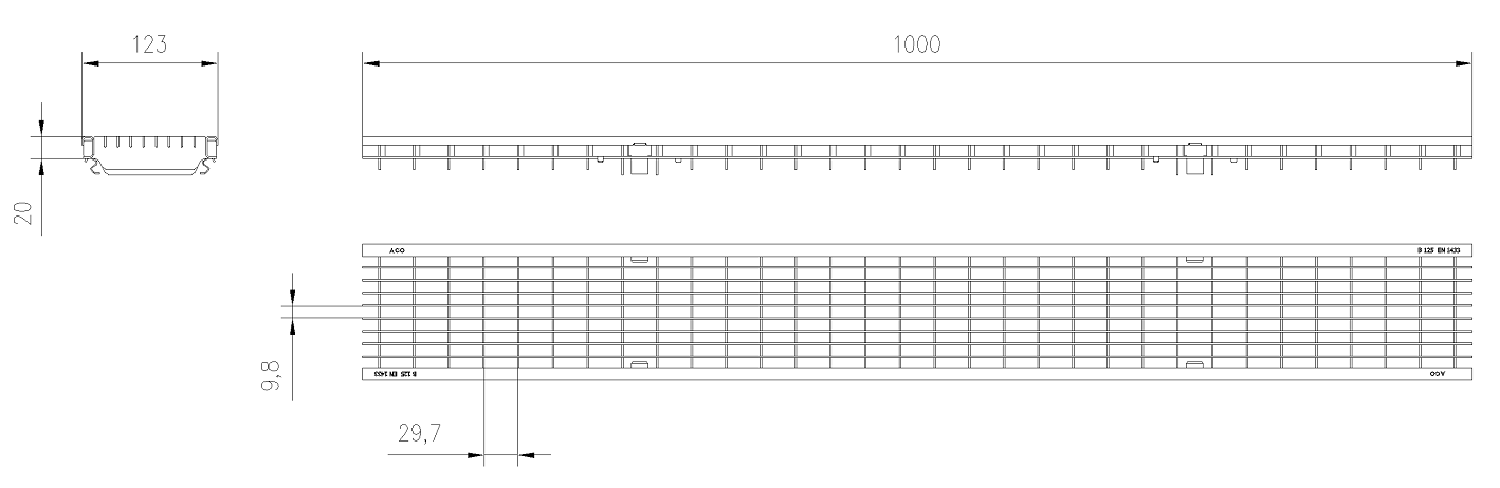

Grate type mesh Q+ in stainless steel AISI 304, with load class B125 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 100. Locking system by Drainlock®. Intake area of 845 cm²/m. Lenght overall 1000 mm, external height 20 mm and external width 123 mm. Unit weight: 3,2 kg.
