Description

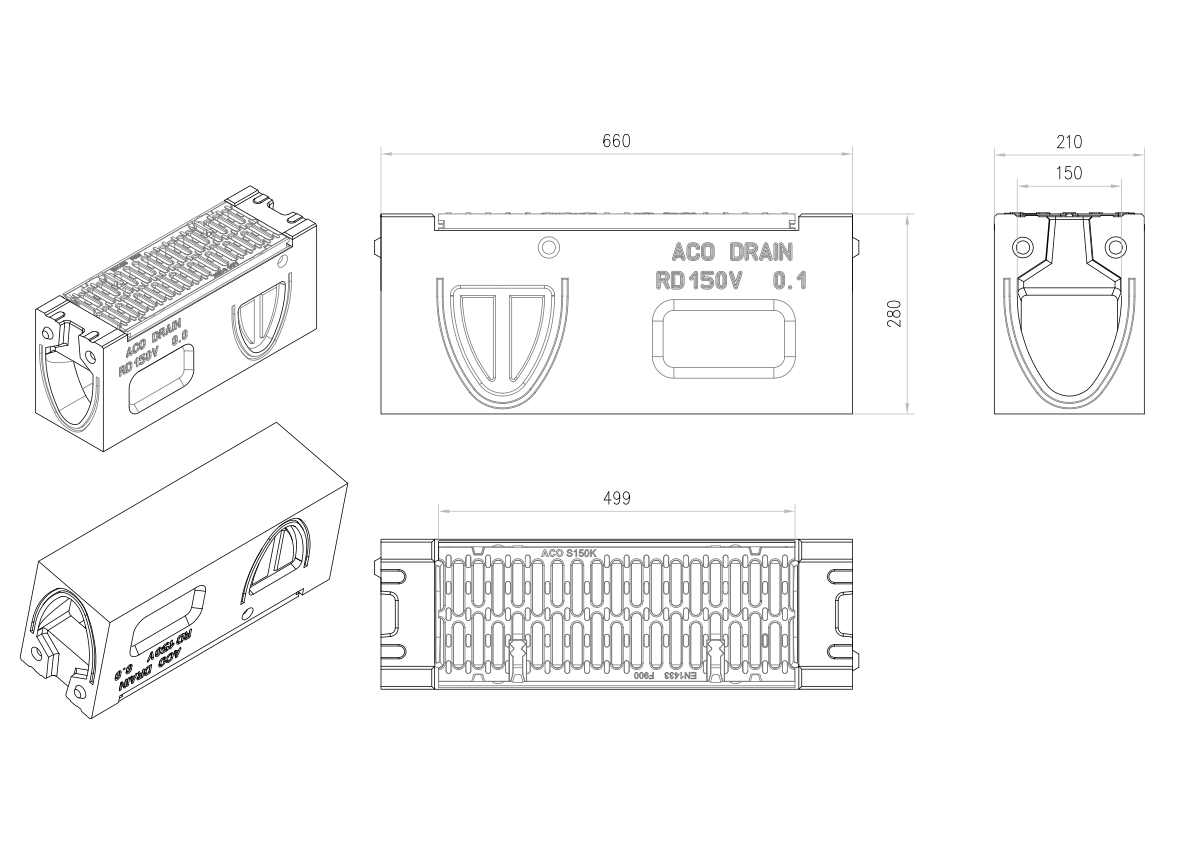

Drainage channel type ACO MONOBLOCK RD150V 0.0 in polymer concrete, load class F900 according to EN-1433. Monolithic with integrated grating in cast iron type slotted and with locking system Powerlock®. With internal section of 183 cm² and with cross section in V. Total length of 660 mm, external height 280 mm and outside width 210 mm. Nominal internal width of 150 mm. Weight: 44,3 kg.
Technical Specifications
Dimensions
- Model:
- MONOBLOCK RD150V
- Length (mm):
- 660
- Width (mm):
- 210
- Height (mm):
- 280
- Weight (kg):
- 44,3
- Intake area (cm2/m):
- 680
- Load class:
- F900
- Flow rate (l/s):
- 10,8
- Internal section (cm²):
- 183
Catalogs
Technical datasheets
Manuals and installation sections
-
CNL MONOBLOCK RD150V 0.2 660MM H280 C/JUNT LABIO DN 100 F900 W/GR PAS CAST IRON 00130079Price excluding VAT369,09 € -
-
-
-
