Description

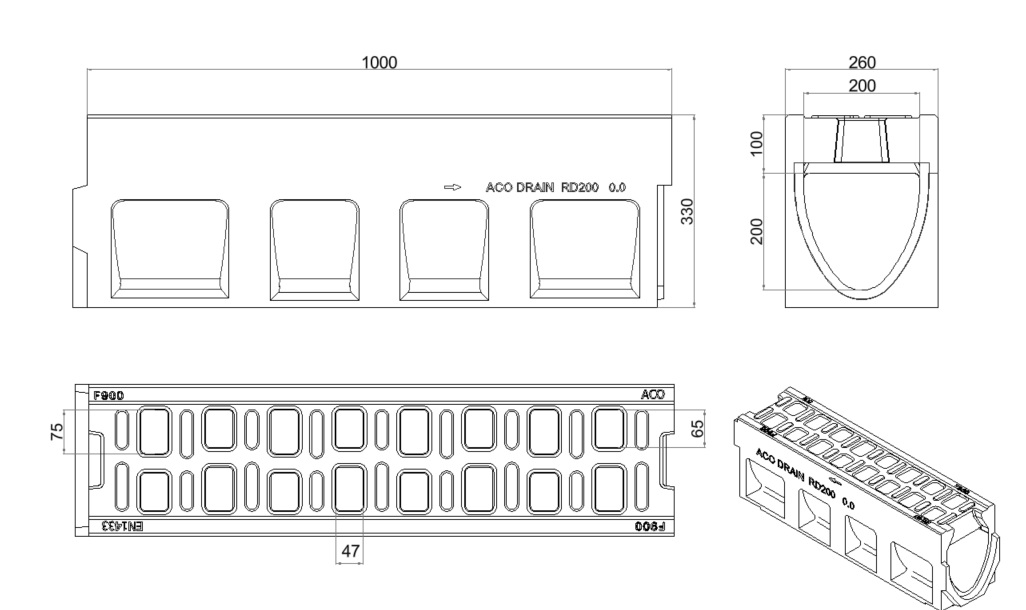

Drainage channel type ACO MONOBLOCK RD200V 0.0 in polymer concrete, load class F900 according to EN-1433. Monolithic with integrated grating in polymer concrete. With internal section of 315 cm² and with cross section in V. Total length of 1000 mm, external height 330 mm and outside width 260 mm. Nominal internal width of 200 mm. Color natural. Weight: 90 kg.
Technical Specifications
Dimensions
- Length (mm):
- 1000
- Width (mm):
- 260
- Height (mm):
- 330
- Weight (kg):
- 90
- Intake area (cm2/m):
- 583
- Load class:
- F900
- Flow rate (l/s):
- 18,9
- Internal section (cm²):
- 315
- Model:
- MONOBLOCK RD200V 0.0
