Description

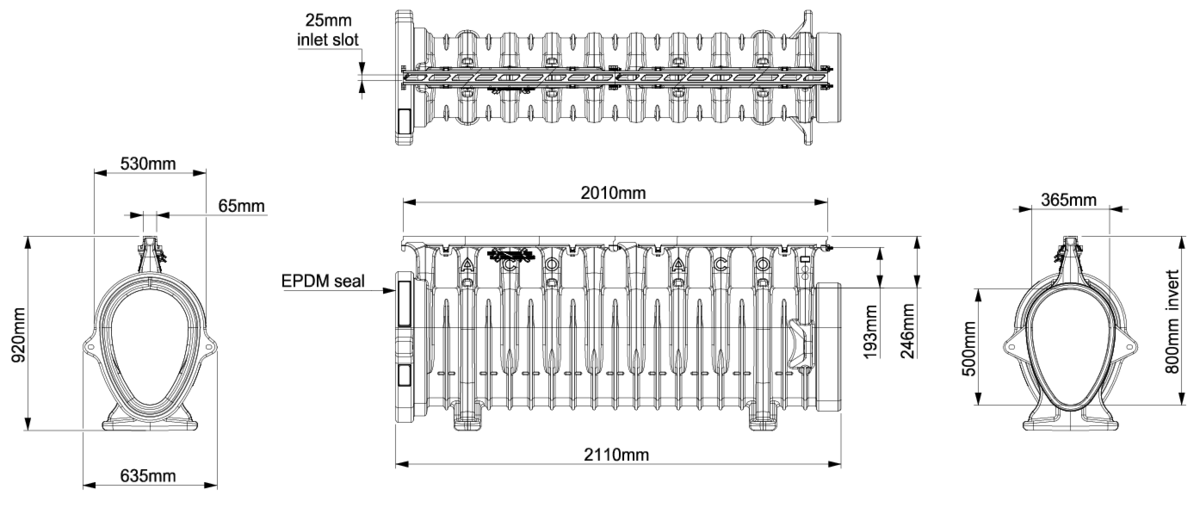

Set of drainage channel ACO QMAX 550 made in high-density polyethylene with integrated grating type ACO Q-Flow in composite, load class up to F900 according to EN1433. With an inner section of 1544 cm². With EPDM watertight joint for connection and grating with templates for fixing to the pavement. Oval inner section with 1544 cm². Total length of 2000 mm, external height 920 mm and external width 635 mm. Nominal internal width 365 mm. Weight: 35,0 kg.
Technical Specifications
Dimensions
- Model:
- QMAX 550
- Height (mm):
- 920
- Weight (kg):
- 35,0
- Intake area (cm2/m):
- 184
- Load class:
- F900
- Flow rate (l/s):
- 160
- Internal section (cm²):
- 1544
- Length (mm):
- 2000
- Width (mm):
- 635
