Description

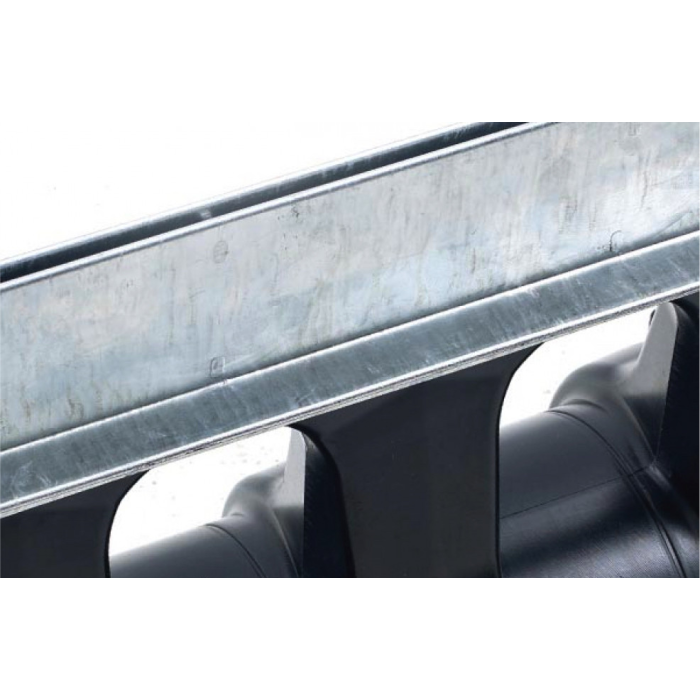

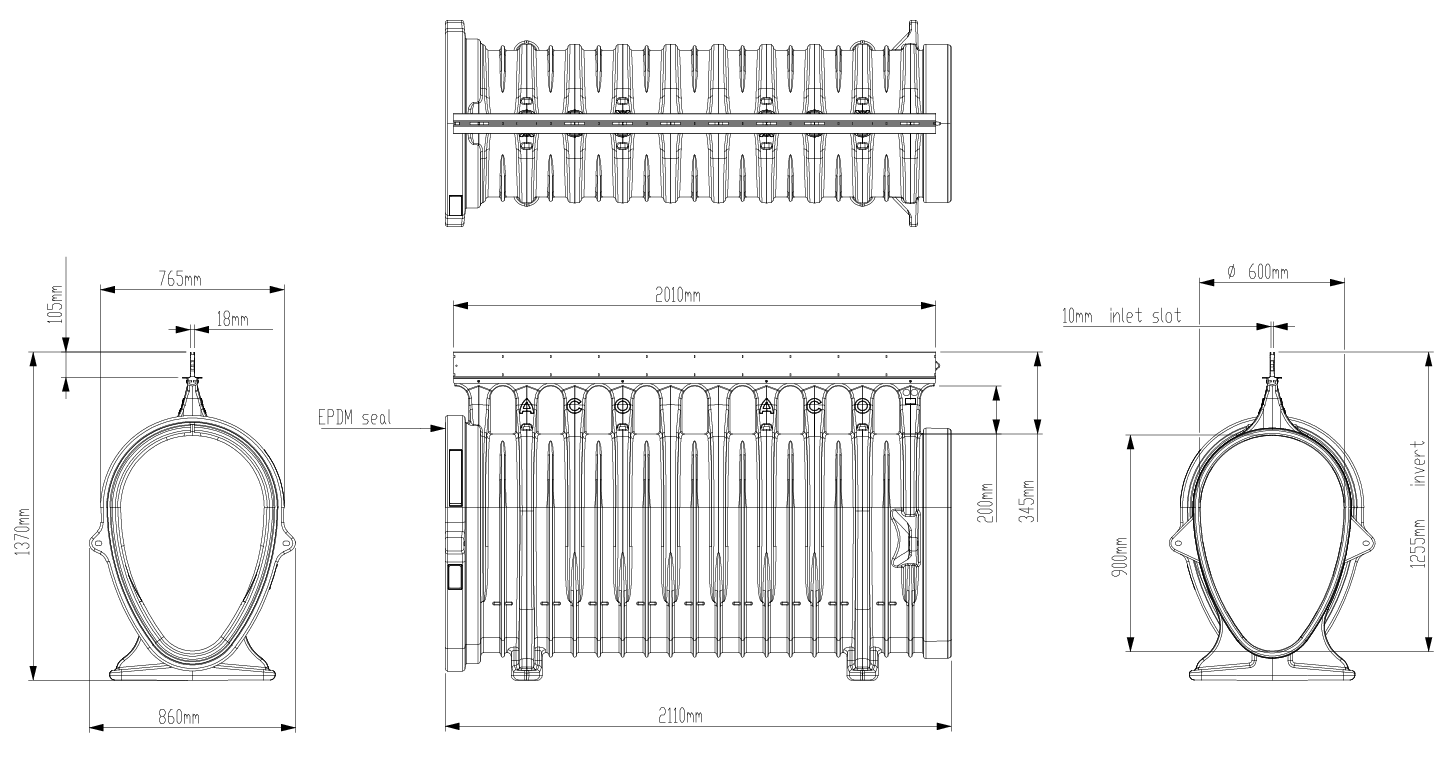

Set of drainage channel ACO QMAX 900 made in high-density polyethylene with integrated grating type ACO Q-Slot in galvanised, load class up to D400 according to EN1433. With an inner section of 4135 cm². With EPDM watertight joint for connection and grating with templates for fixing to the pavement. Oval inner section with 4135 cm². Total length of 2000 mm, external height 1370 mm and external width 860 mm. Nominal internal width 600 mm. Weight: 62,3 kg.
Technical Specifications
Dimensions
- Model:
- QMAX 900
- Length (mm):
- 2000
- Width (mm):
- 860
- Height (mm):
- 1370/105
- Weight (kg):
- 62,3
- Intake area (cm2/m):
- 100
- Load class:
- D400
- Flow rate (l/s):
- 580
- Internal section (cm²):
- 4135
