Description

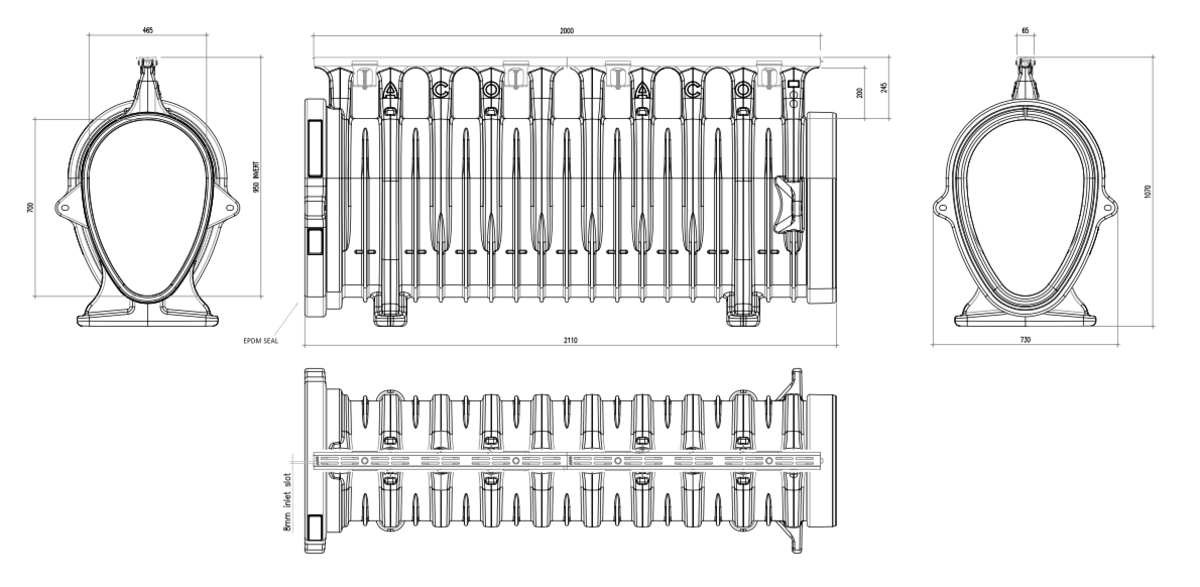

Set of drainage channel ACO QMAX 700 made in high-density polyethylene with integrated grating type ACO Q-Guard in cast iron, load class up to F900 according to EN1433. With an inner section of 2501 cm². With EPDM watertight joint for connection and grating with templates for fixing to the pavement. Oval inner section with 2501 cm². Total length of 2000 mm, external height 1070 mm and external width 730 mm. Nominal internal width 465 mm. Weight: 50,7 kg.
Technical Specifications
Dimensions
- Intake area (cm2/m):
- 109,25
- Load class:
- F900
- Flow rate (l/s):
- 300
- Internal section (cm²):
- 2501
- Model:
- QMAX 700
- Length (mm):
- 2000
- Width (mm):
- 730
- Height (mm):
- 1070
- Weight (kg):
- 50,7
