CNL ML V300S 20.0 100CM H485 E600

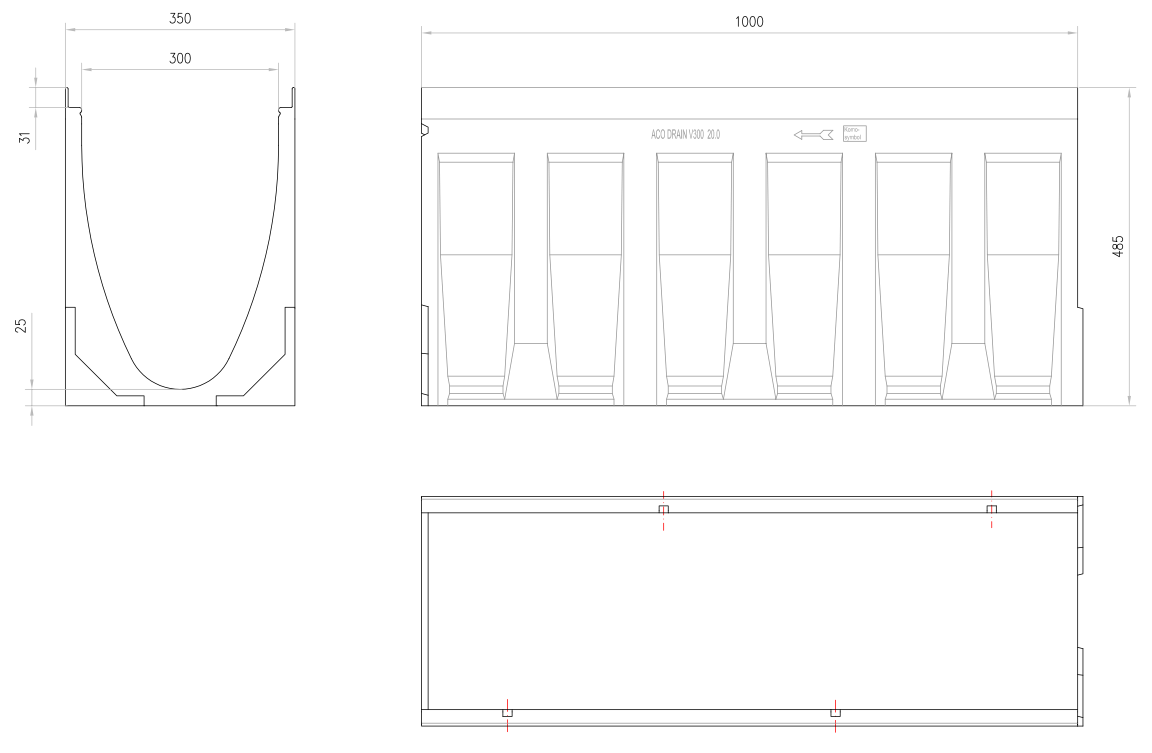

Surface drainage channel type ACO MULTILINE V300G 20.0 H485 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 1035 cm² with V-shape optimized transverse section. Total length 1000 mm, height overall 485 mm and total width 350 mm. Nominal width 300 mm. Weight: 74,6 kg.
