CNL ML V200S 10.0 100CM H315 E600

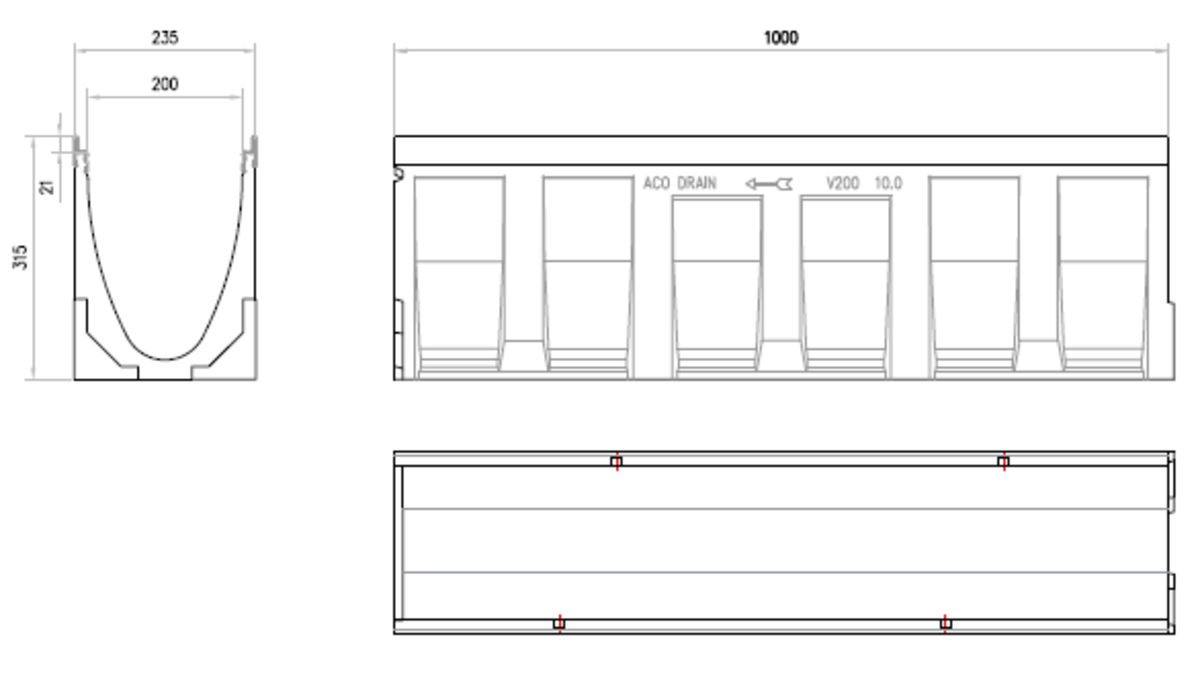

Surface drainage channel type ACO MULTILINE V200G 10.0 H315 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 390 cm² with V-shape optimized transverse section. Total length 1000 mm, height overall 315 mm and total width 235 mm. Nominal width 200 mm. Weight: 44 kg.
