CNL ML V200S 0.1 50CM H265 E600

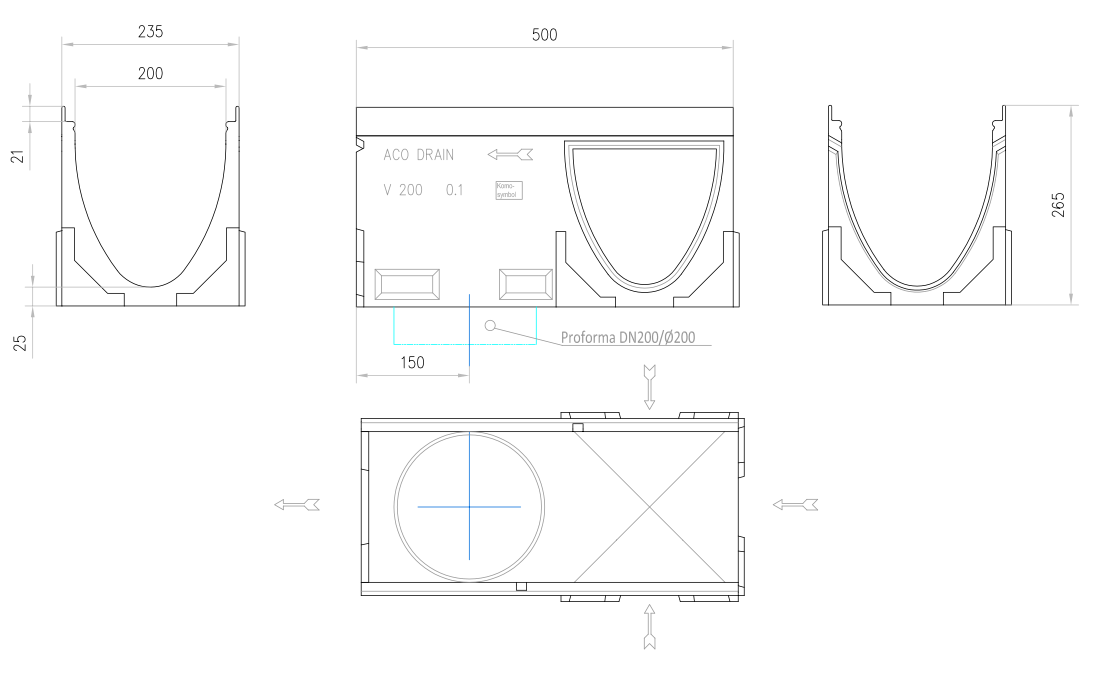

Surface drainage channel type ACO MULTILINE V200G 0.1 H265 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 310 cm² with V-shape optimized transverse section. Total length 500 mm, height overall 265 mm and total width 235 mm. Nominal width 200 mm. Weight: 23,5 kg.
