CNL ML V150S 15.0 100CM H285 E600

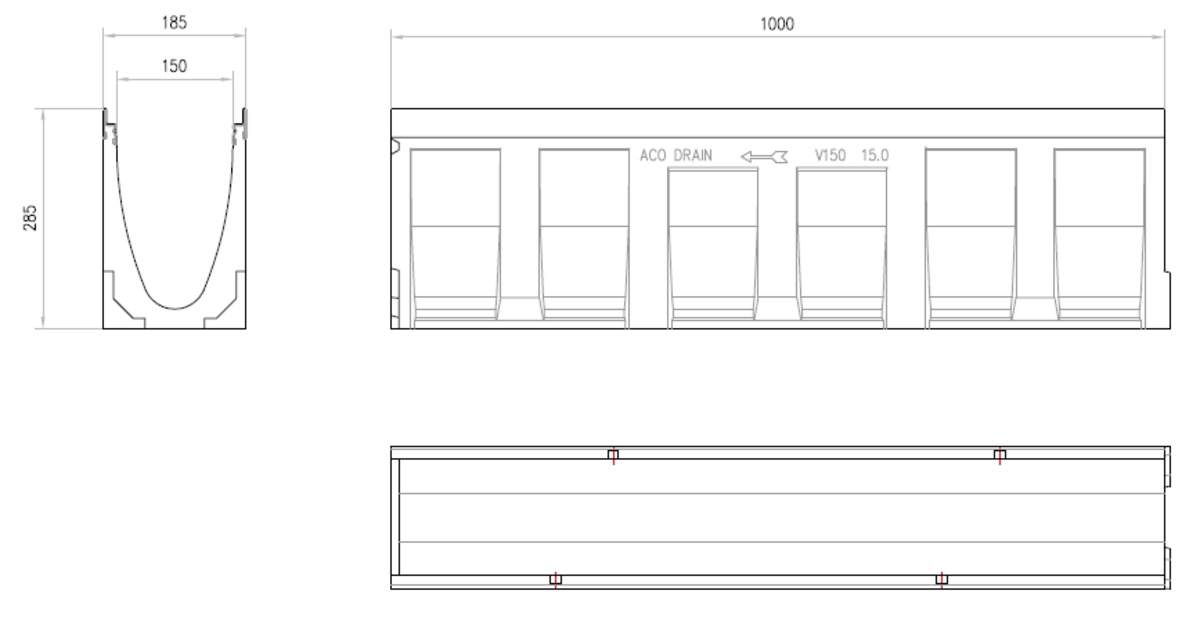

Surface drainage channel type ACO MULTILINE V150G 15.0 H285 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 268 cm² with V-shape optimized transverse section. Total length 1000 mm, height overall 285 mm and total width 185 mm. Nominal width 150 mm. Weight: 36,1 kg.
