CNL ML V150S 10.1 50CM H260 E600

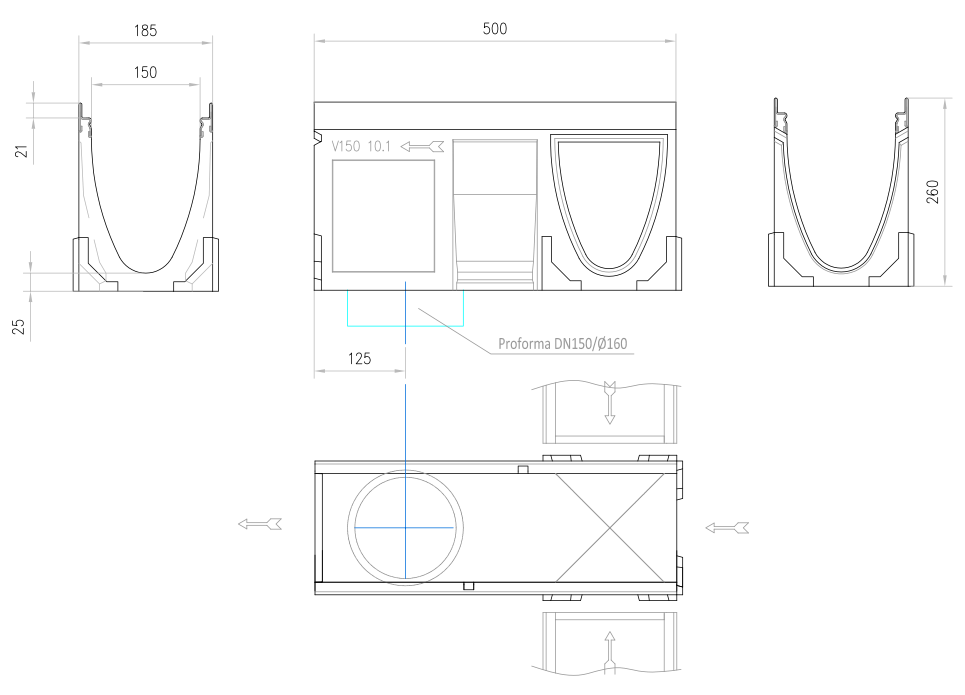

Surface drainage channel type ACO MULTILINE V150G 10.1 H260 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 238 cm² with V-shape optimized transverse section. Total length 500 mm, height overall 260 mm and total width 185 mm. Nominal width 150 mm. Weight: 16,9 kg.
