CNL ML V150S 0.1 50CM H210 E600

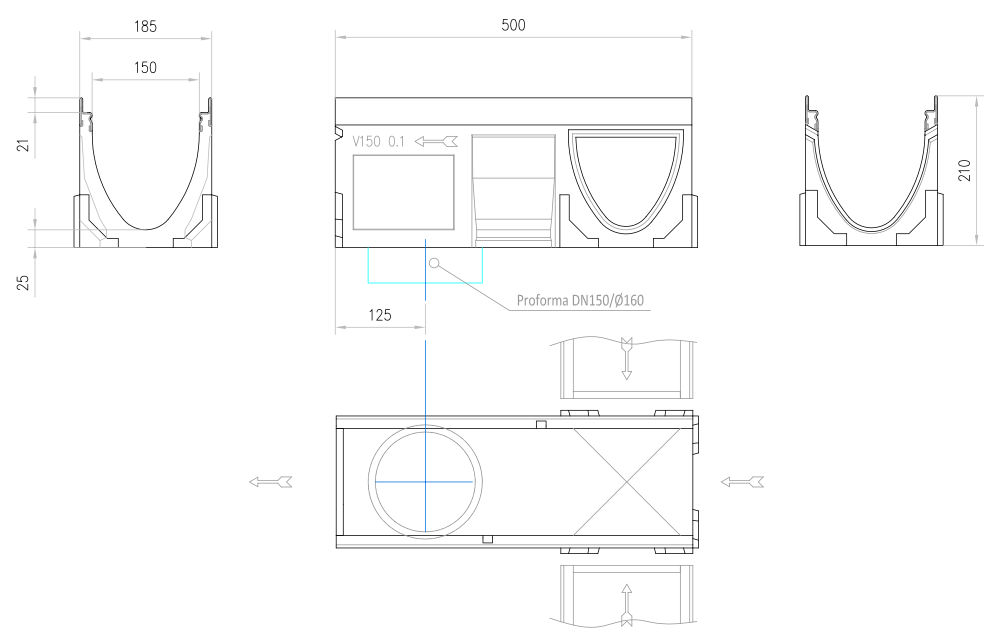

Surface drainage channel type ACO MULTILINE V150G 0.1 H210 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 178 cm² with V-shape optimized transverse section. Total length 500 mm, height overall 210 mm and total width 185 mm. Nominal width 150 mm. Weight: 15 kg.
