Description

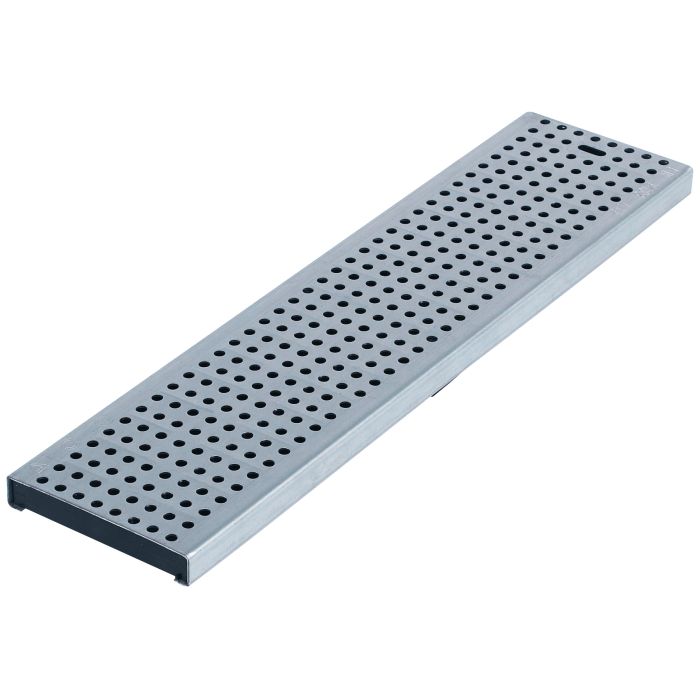

Grate type perforated in galvanised steel, with load class A15 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 100. Locking system by Drainlock®. Intake area of 178 cm²/m. Lenght overall 500 mm, external height 21 mm and external width 123 mm. Unit weight: 1,4 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 100
- Length (mm):
- 500
- Width overall (mm):
- 123
- Total height (mm):
- 21
- Weight (kg):
- 1,4
- Intake area (cm²/m):
- 178
- Load Class:
- A15
