Description

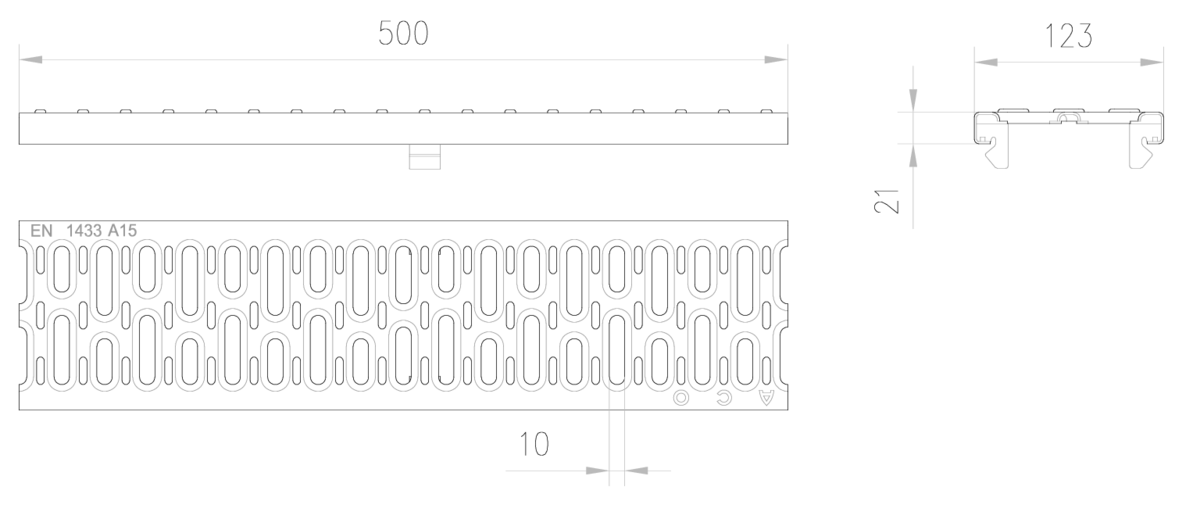

Grate type slotted in stainless steel AISI 304, with load class A15 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 100. Locking system by Drainlock®. Intake area of 312 cm²/m. Lenght overall 500 mm, external height 21 mm and external width 123 mm. Unit weight: 1,1 kg.
Technical Specifications
Dimensions
- :
- :
- :
- :
- :
- :
- :
Catalogs
Technical datasheets
Certificates
