CNL ML V400G 0.0 100CM H480 E600

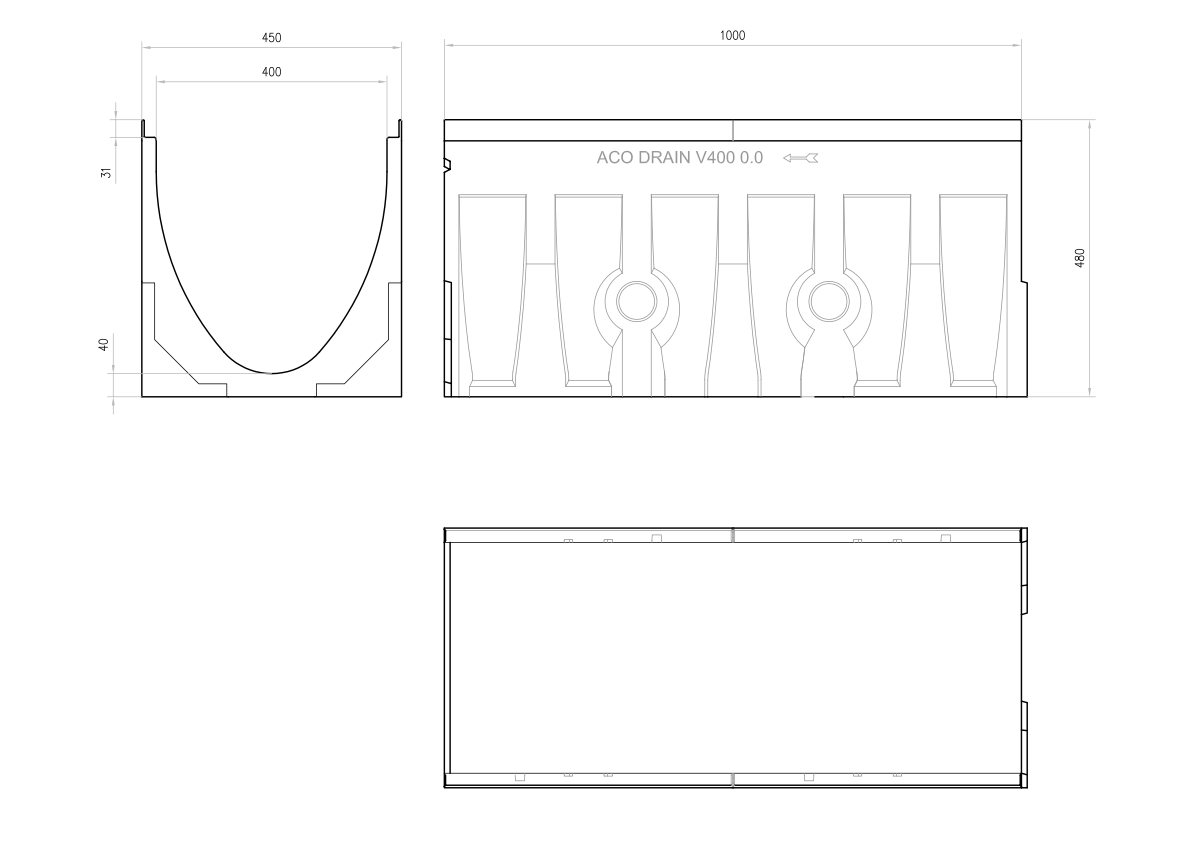

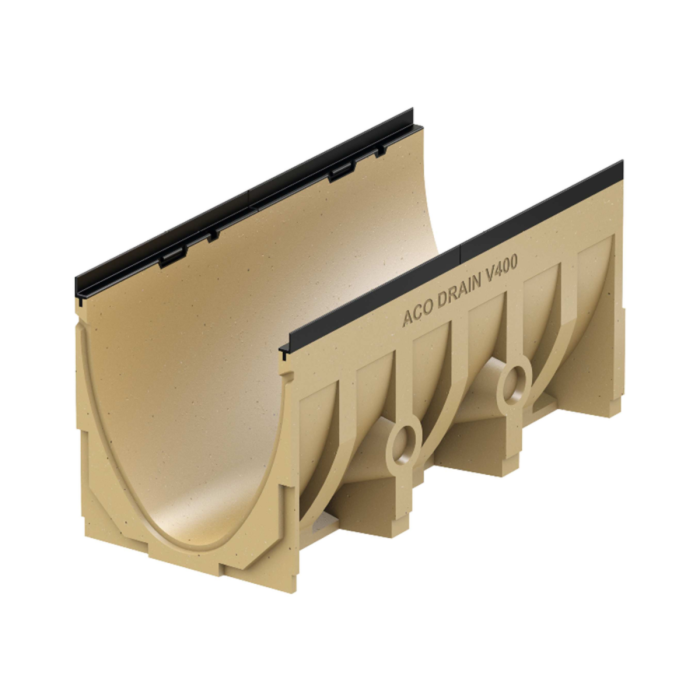

Surface drainage channel type ACO MULTILINE V400G 0.0 H480 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over cast iron edge rails integrated on channel body wall. Internal area of 1262 cm² with V-shape optimized transverse section. Total length 1000 mm, height overall 480 mm and total width 450 mm. Nominal width 400 mm. Weight: 109,5 kg.
