CNL ML V100S 15.1 50CM H225 E600

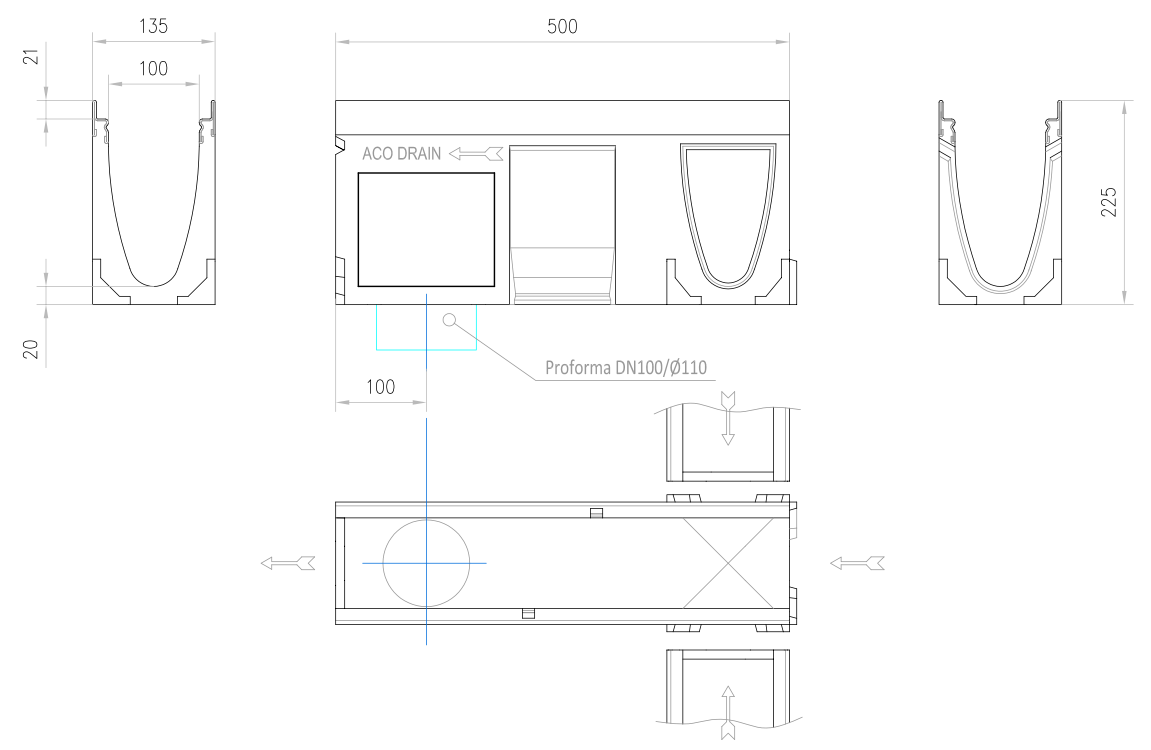

Surface drainage channel type ACO MULTILINE V100G 15.1 H225 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 140 cm² with V-shape optimized transverse section. Total length 500 mm, height overall 225 mm and total width 135 mm. Nominal width 100 mm. Weight: 13,3 kg.
