CNL ML V100S 5.1 50CM H175 E600

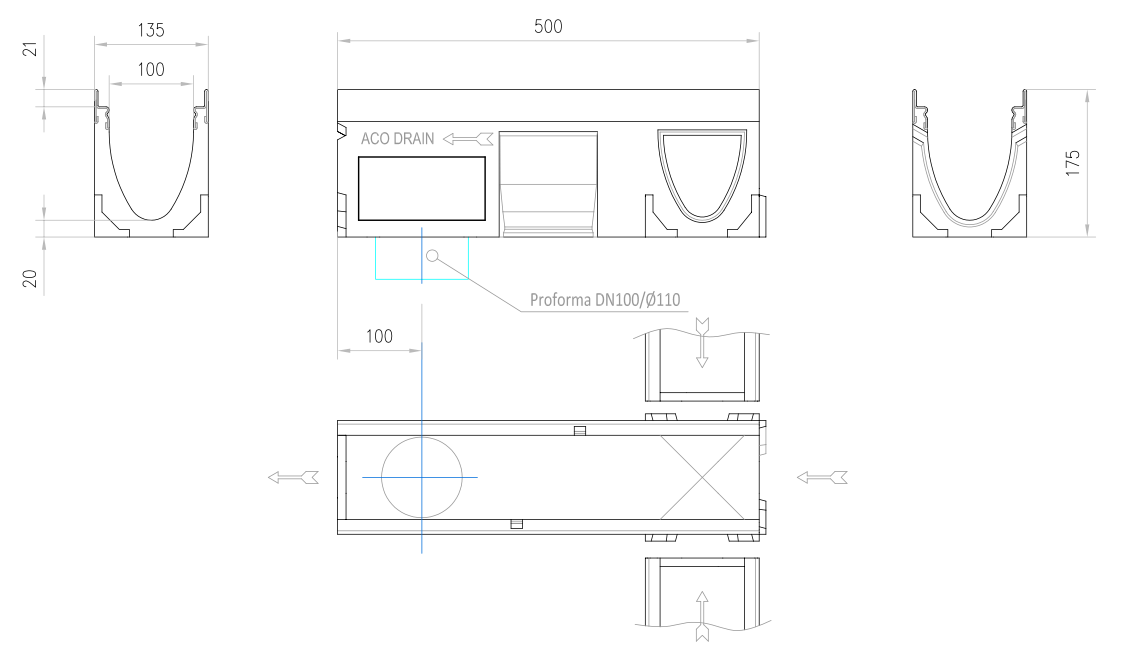

Surface drainage channel type ACO MULTILINE V100G 5.1 H175 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised edge rails integrated on channel body wall. Internal area of 100 cm² with V-shape optimized transverse section. Total length 500 mm, height overall 175 mm and total width 135 mm. Nominal width 100 mm. Weight: 9,7 kg.
