CNL ML V100S BA 100CM H90 E600

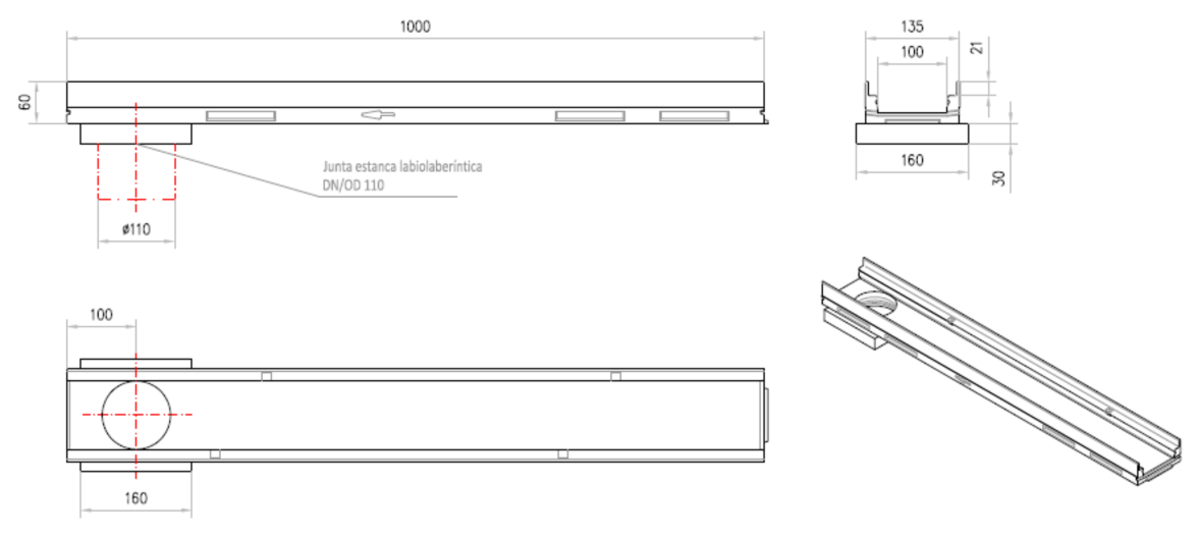

Surface drainage channel type ACO MULTILINE V100G BA H90 in polymer concrete without grating. Load class till E600 in accordance with EN1433. Fast locking grates sytem by ACO Drainlock® over galvanised steel edge rails integrated on channel body wall. Internal area of 15 cm² with V-shape optimized transverse section. Total length 1000 mm, height overall 90 mm and total width 135 mm. Nominal width 100 mm. Weight: 10,8 kg.
