CNL XD 200 1000MM H265 DN/OD 200 C250

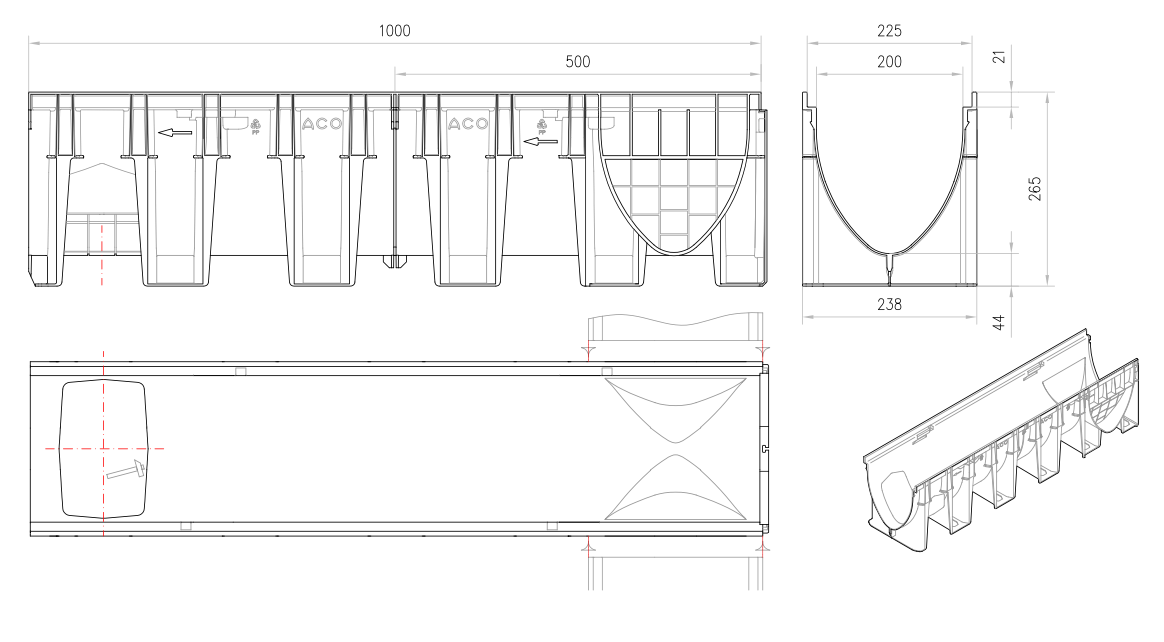

Surface drainage channel type ACO XTRADRAIN 200 H265 in composite, load class till C250 in accordance with EN1433. Without grating. Fast locking grates system by Drainlock® over edge rails integrated on channel body wall. With preform for vertical output accessory vertical DN/OD 200. Internal area of 200 cm² with V-shape optimized transverse section. Total length 1000 mm, height overall 265 mm and total width 238 mm. Nominal width 200 mm. Weight: 3,4 kg.
Artículo: 00011058
