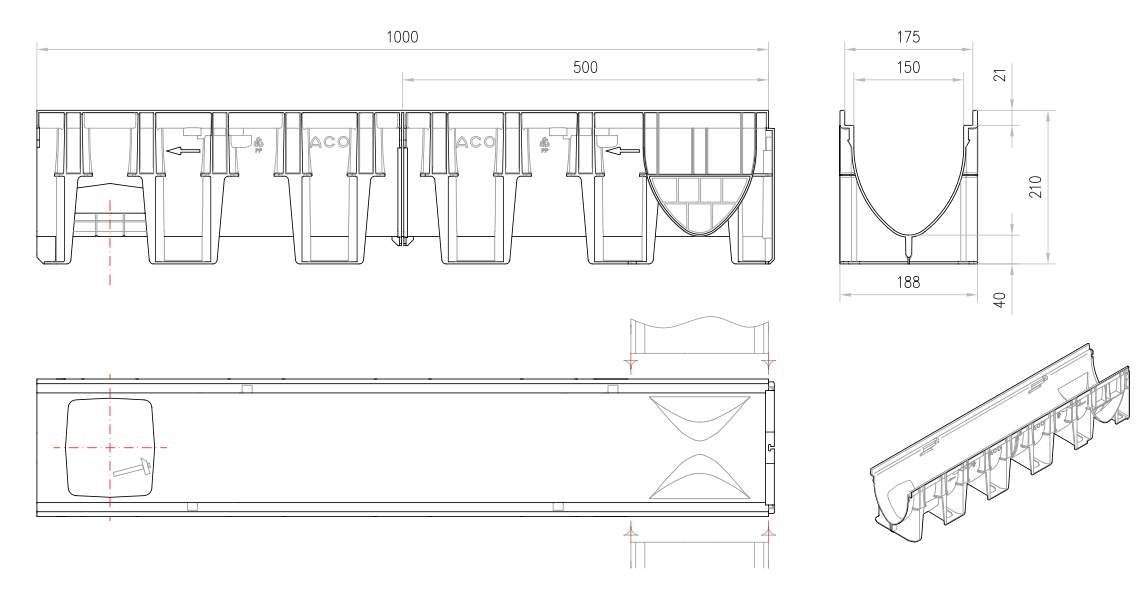

CNL XD 150 1000MM H210 DN/OD 160 C250

Surface drainage channel type ACO XTRADRAIN 150 H210 in composite, load class till C250 in accordance with EN1433. Without grating. Fast locking grates system by Drainlock® over edge rails integrated on channel body wall. With preform for vertical output accessory vertical DN/OD 160. Internal area of 150 cm² with V-shape optimized transverse section. Total length 1000 mm, height overall 210 mm and total width 188 mm. Nominal width 150 mm. Weight: 2,5 kg.
Artículo: 00011051
