Description

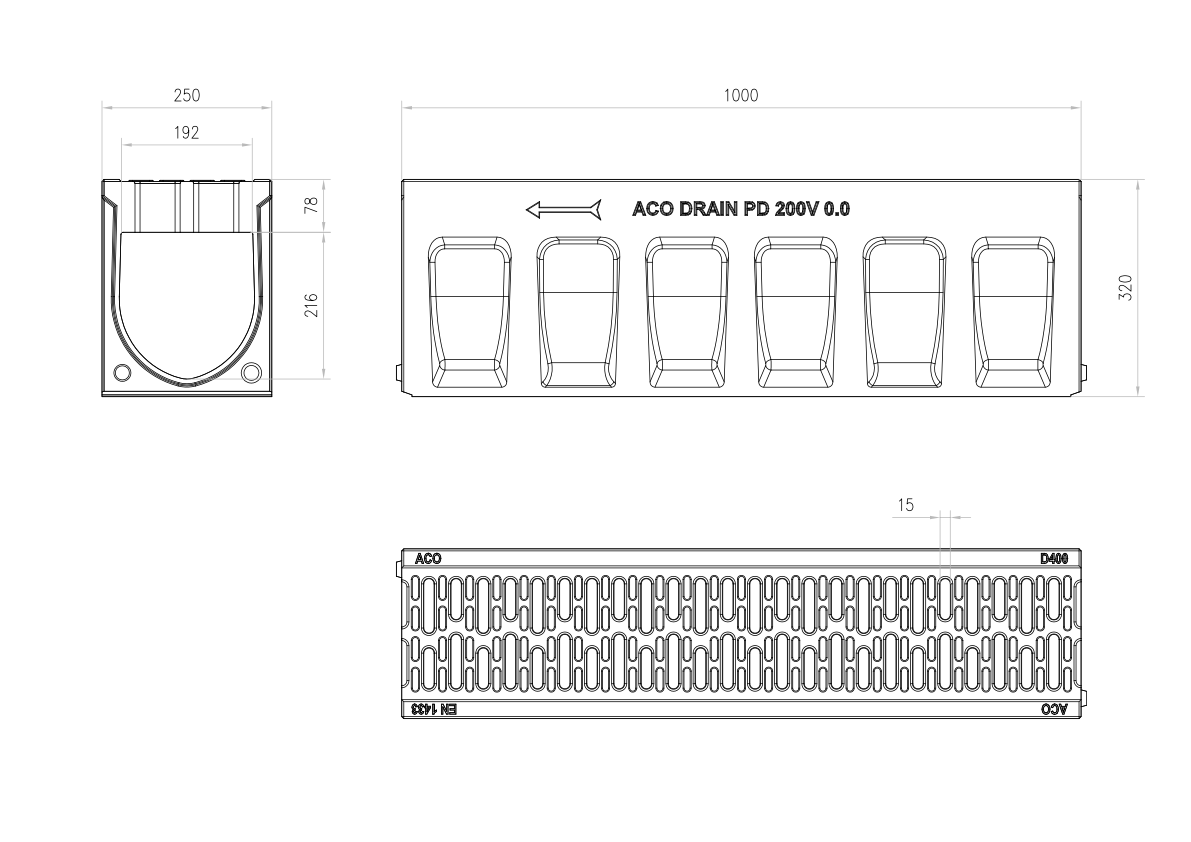

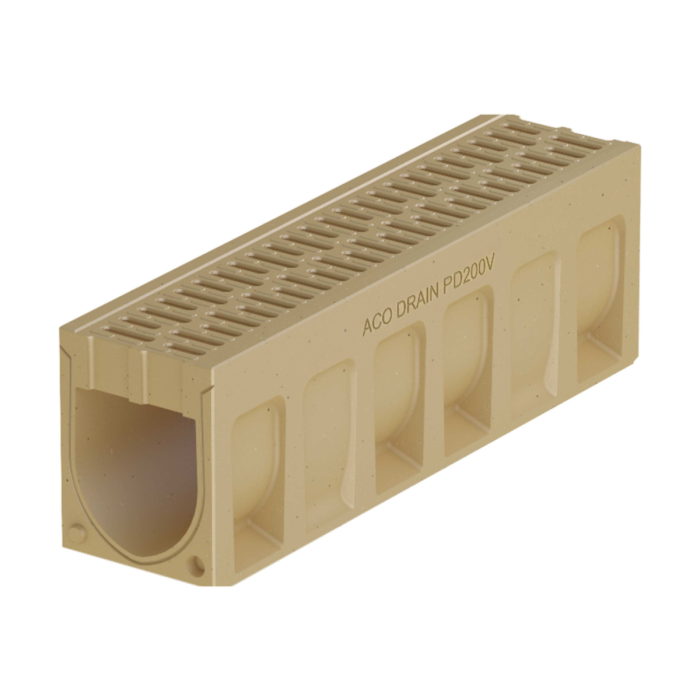

Drainage channel type ACO MONOBLOCK PD200V 0.0 in polymer concrete, load class D400 according to EN-1433. Monolithic with integrated grating in polymer concrete. With internal section of 371 cm² and with cross section in V. Total length of 1000 mm, external height 320 mm and outside width 250 mm. Nominal internal width of 200 mm. Color natural. Weight: 73 kg.
Technical Specifications
Dimensions
- Model:
- MONOBLOCK PD200V
- Length (mm):
- 1000
- Width (mm):
- 250
- Height (mm):
- 320
- Weight (kg):
- 73
- Intake area (cm2/m):
- 440
- Load class:
- D400
- Flow rate (l/s):
- 22
- Internal section (cm²):
- 371
