CNL MONOBLOCK RD300V 0.1 750MM H645 DN/OD 315 F900 W/GR PAS CAST IRON
00010803
1.345,15 €
Description

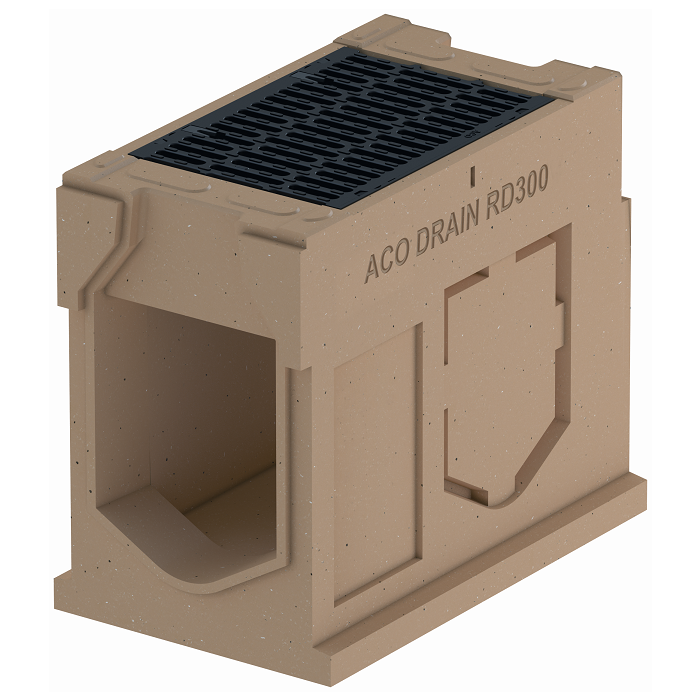

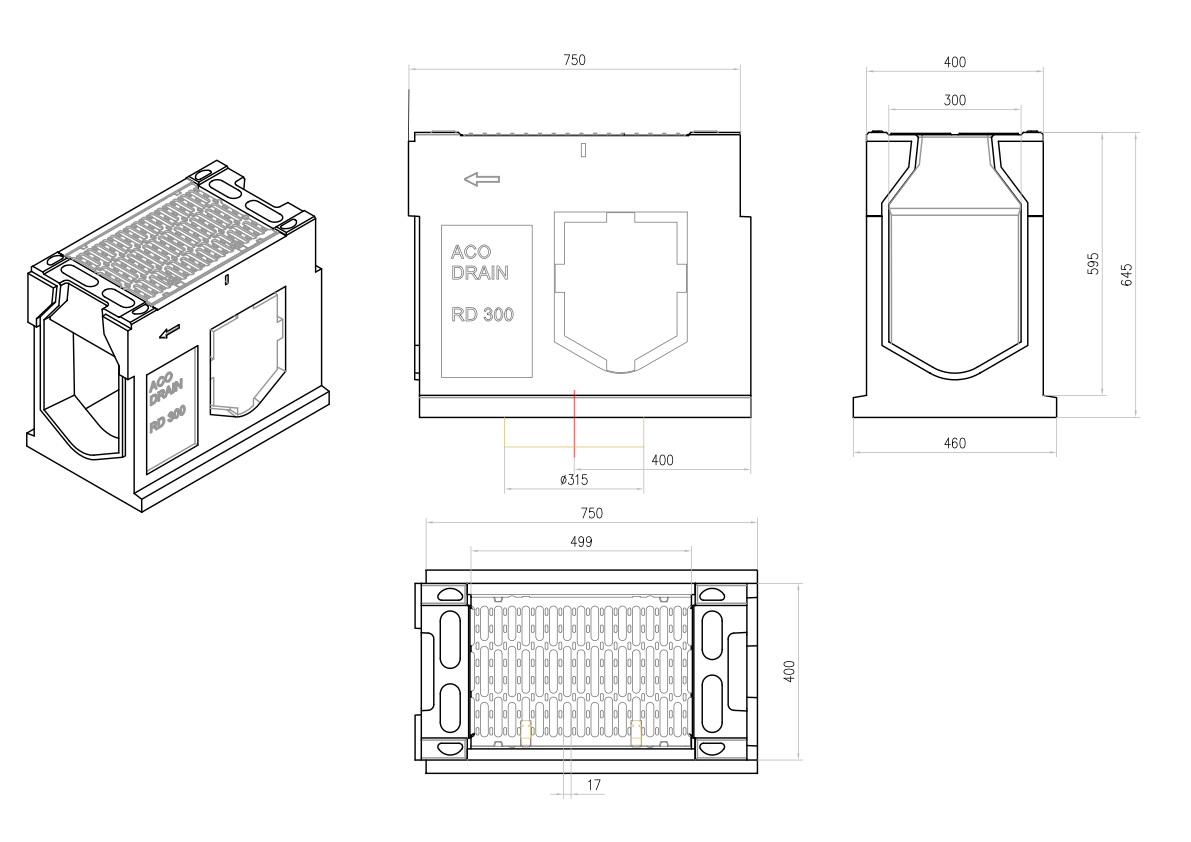

Drainage channel type ACO MONOBLOCK RD300V 0.1 in polymer concrete, load class F900 according to EN-1433. Monolithic with integrated grating in cast iron type slotted and with locking system Powerlock®. With internal section of 1020 cm² and with cross section in V. Total length of 750 mm, external height 645 mm and outside width 400 mm. Nominal internal width of 300 mm. Weight: 219 kg.
Technical Specifications
Dimensions
- Internal section (cm²):
- 1020
- Model:
- MONOBLOCK RD300V
- Length (mm):
- 750
- Width (mm):
- 400
- Height (mm):
- 645
- Weight (kg):
- 219
- Intake area (cm2/m):
- 935
- Load class:
- F900
- Flow rate (l/s):
- 84
