Description

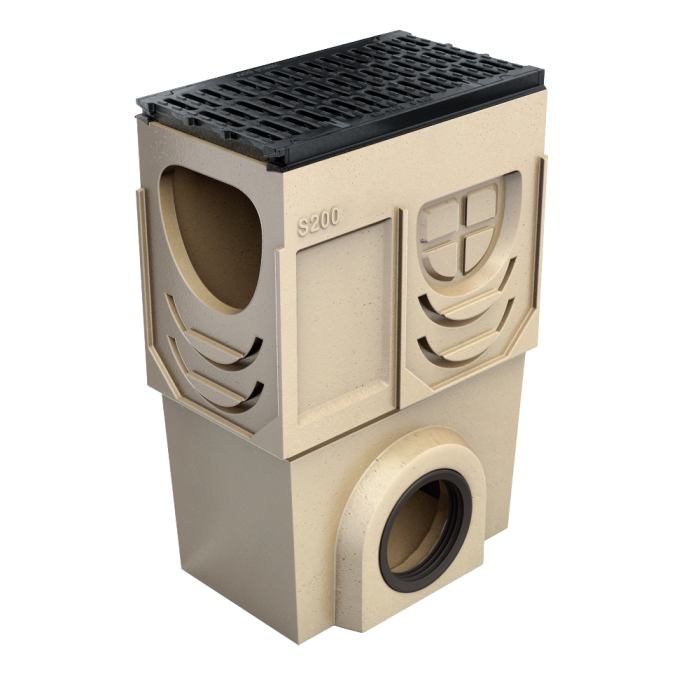

Sump type ACO SK 200, in polymer concrete, with removable grating type slotted in cast iron and load class F900 according to EN1433. With quick locking system Powerlock® on cast iron frame. With breakable side preforms for L-T-X connections and with lateral preform with integrated lip-seal for horizontal outlet DN/OD 200. With plastic basket for collecting solids. Total length 500 mm, external height 700 mm and external width 260 mm. Weight: 73,5 kg.
Technical Specifications
Dimensions
- Grate type:
- 935
- Grate material:
- DN/OD 200
- Load class:
- F900
- Silt bucket:
- Yes
- Silt bucket material:
- plastic
- H (mm):
- 73,5
- Model:
- SK 200
- Weight (kg):
- 500
- L (mm):
- 260
- A (mm):
- 700
- :
- :
- :
