Description

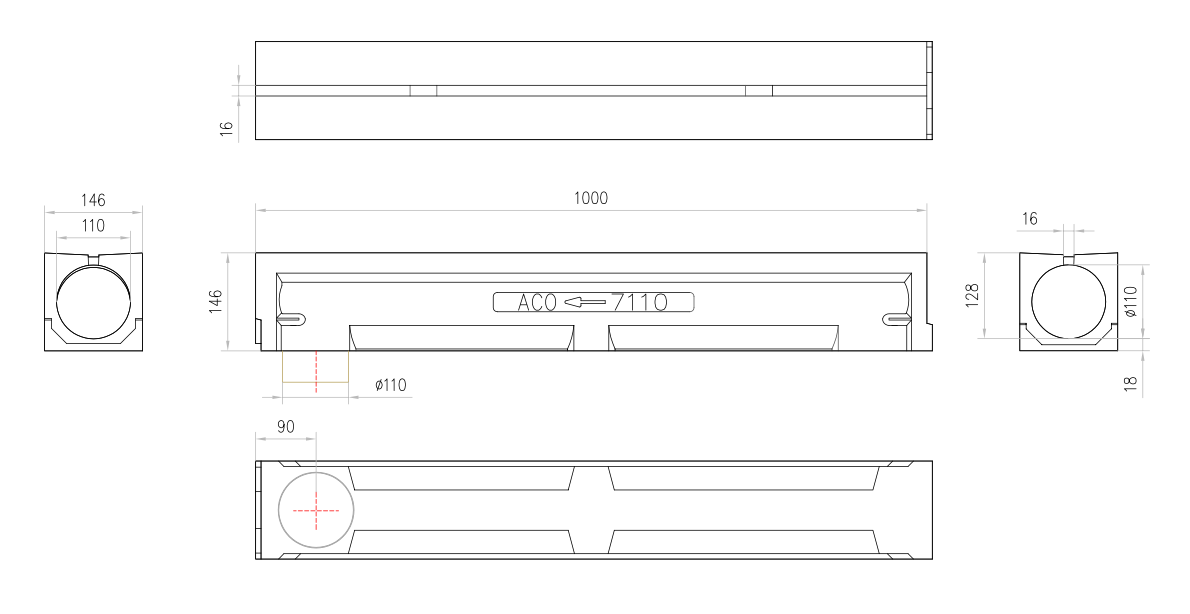

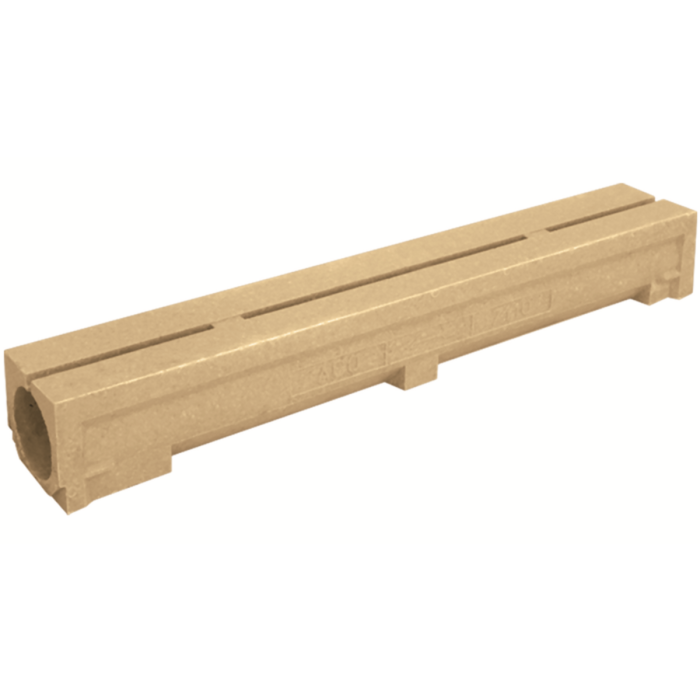

ACO SLIMLINE draiange channel made in polymer concrete, load class up to B125 according to EN1433. Monolithic with integrated polymer concrete slotted grate. With breakable preform for vertical outlet DN/OD 110. With an interior section of 95 cm². Total length 1000 mm, external height 146 mm and external width 146 mm. Nominal internal width ø110 mm. Weight: 18,7 kg.
Article:00007110
Article:00007110
Technical Specifications
Dimensions
- Model:
- SLIMLINE
- Length (mm):
- 1000
- Height (mm):
- 146
- Weight (kg):
- 18,7
- Intake area (cm2/m):
- 150
- Load class:
- B125
- Flow rate (l/s):
- 4,2
- Internal section (cm²):
- 95
- Width (mm):
- 146
- :
