Description

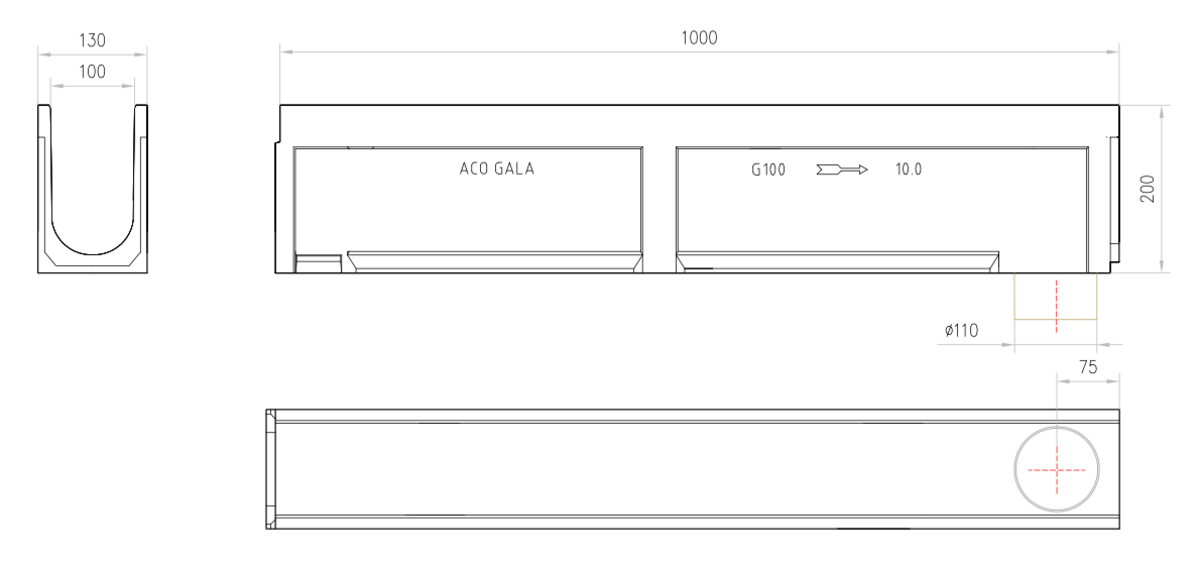

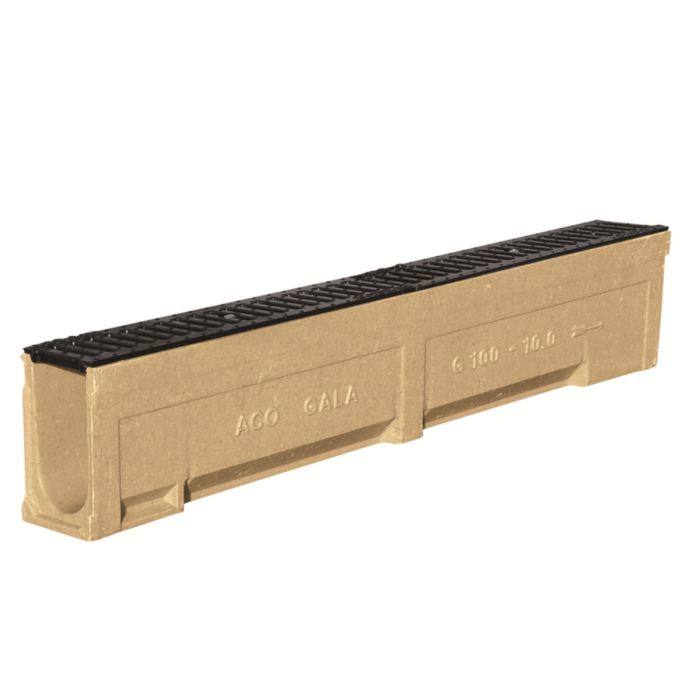

Drainage channel type ACO GALA 100 in Concrete Polymer without grating with load class C250 according to EN1433. Locking system by bolt and bar. Internal section 165 cm² with vertical knockout DN/OD 110. Total length 1000 mm, overall height 200 mm and overall width 130 mm. Nominal width 100. Weight: 15,4 kg.
Technical Specifications
Dimensions
- Model:
- GALA 100
- Length (mm):
- 1000
- Width (mm):
- 130
- Height (mm):
- 200
- Weight (kg):
- 15,4
- Load class:
- C250
- Flow rate (l/s):
- 8,5
- Internal section (cm²):
- 165
- :
