Description

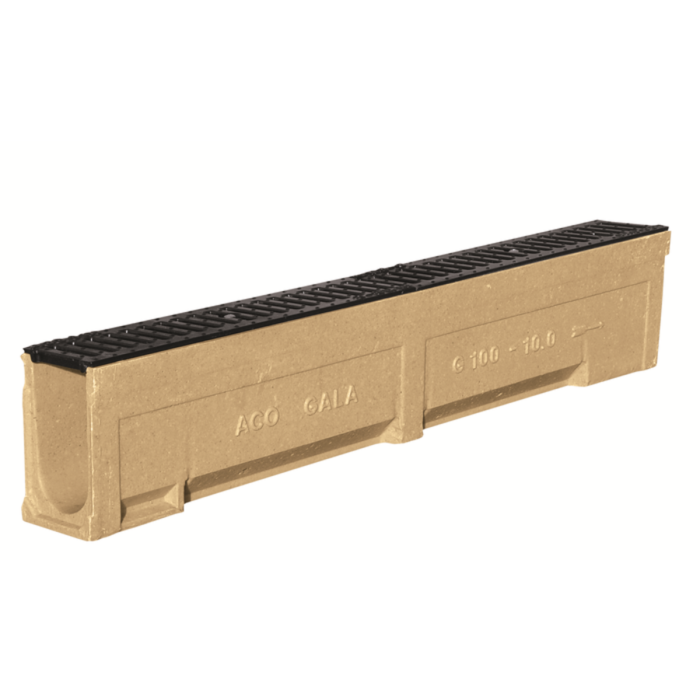

Drainage channel type ACO GALA 100 in Concrete Polymer without grating with load class C250 according to EN1433. Locking system by bolt and bar. Internal section 140 cm² with vertical knockout DN/OD 110. Total length 1000 mm, overall height 175 mm and overall width 130 mm. Nominal width 100. Weight: 14,45 kg.
Technical Specifications

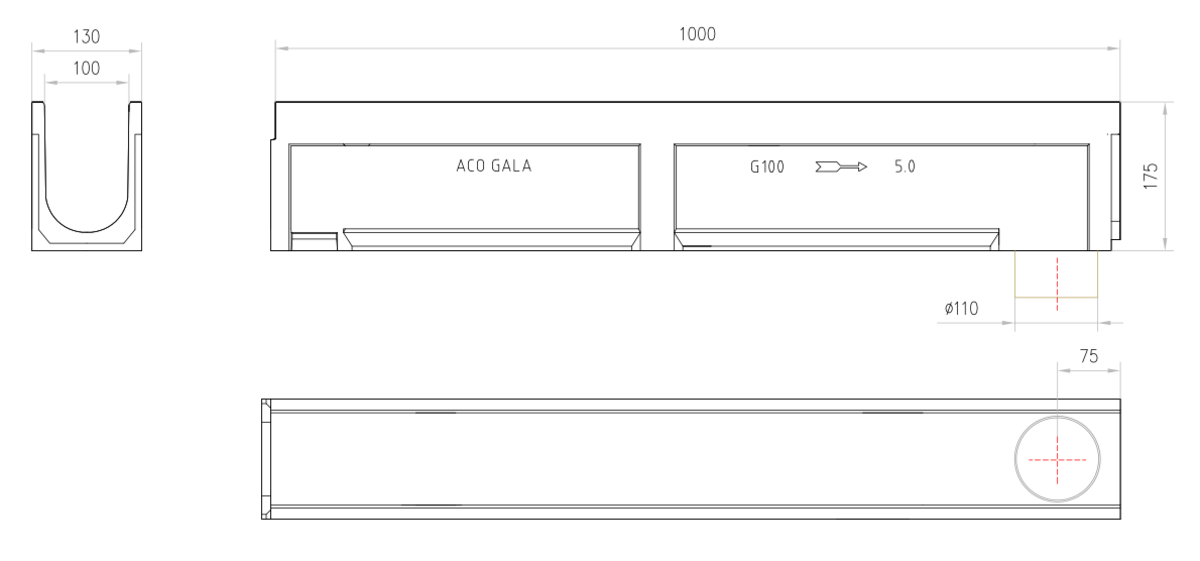

Dimensions
- Model:
- GALA 100
- Length (mm):
- 1000
- Width (mm):
- 130
- Height (mm):
- 175
- Weight (kg):
- 14,45
- Load class:
- C250
- Flow rate (l/s):
- 6,6
- Internal section (cm²):
- 140
- :
