CNL S 300 1000MM H650 DN/OD 200 D400 W/GR PAS CAST IRON

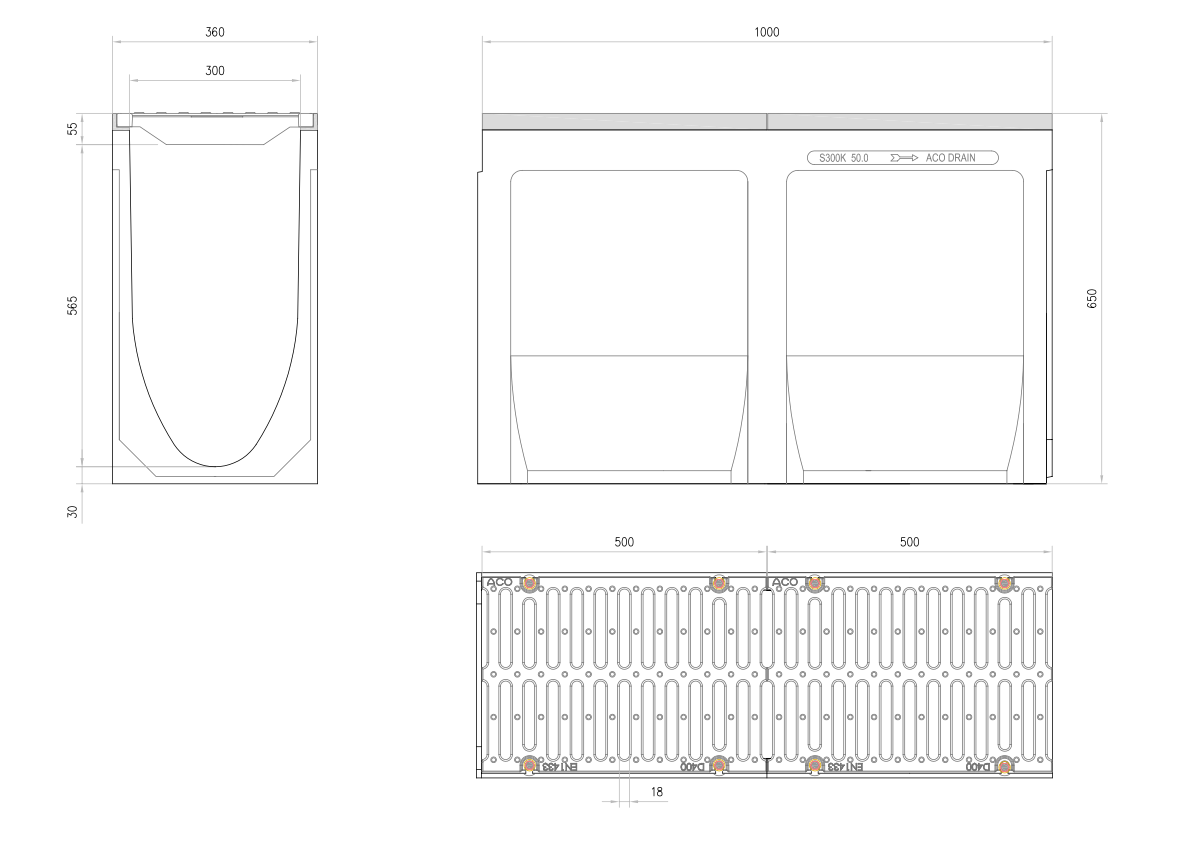

Draianage channel ACO S 300 H650 of polymer concrete, with grate type slotted of cast iron of load class D400 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 200. With an inner section of 1560 cm² and U-shaped cross-section. Grate absorption area of ​​1388 cm²/m. Total length 1000 mm, outer height 650 mm and outer width 360 mm. Nominal inner width 300 mm. Weight: 149 kg.
Item:00004332
