CNL S 200 20.0 1000MM H390 DN/OD 160 D400 W/GR PAS CAST IRON

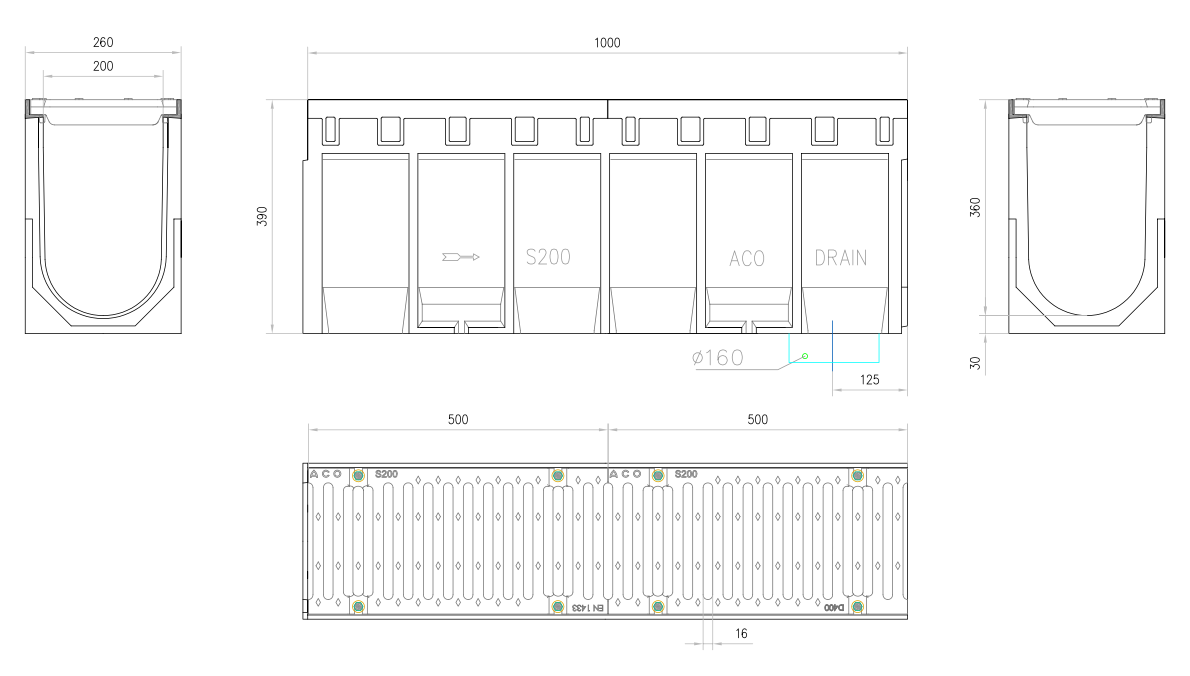

Draianage channel ACO S 200 H390 of polymer concrete, with grate type slotted of cast iron of load class D400 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 160. With an inner section of 615 cm² and U-shaped cross-section. Grate absorption area of ​​918 cm²/m. Total length 1000 mm, outer height 390 mm and outer width 260 mm. Nominal inner width 200 mm. Weight: 84,6 kg.
Item:00004283
