CNL S 200 0.0 1000MM H290 DN/OD 160 F900 W/GR PAS CAST IRON

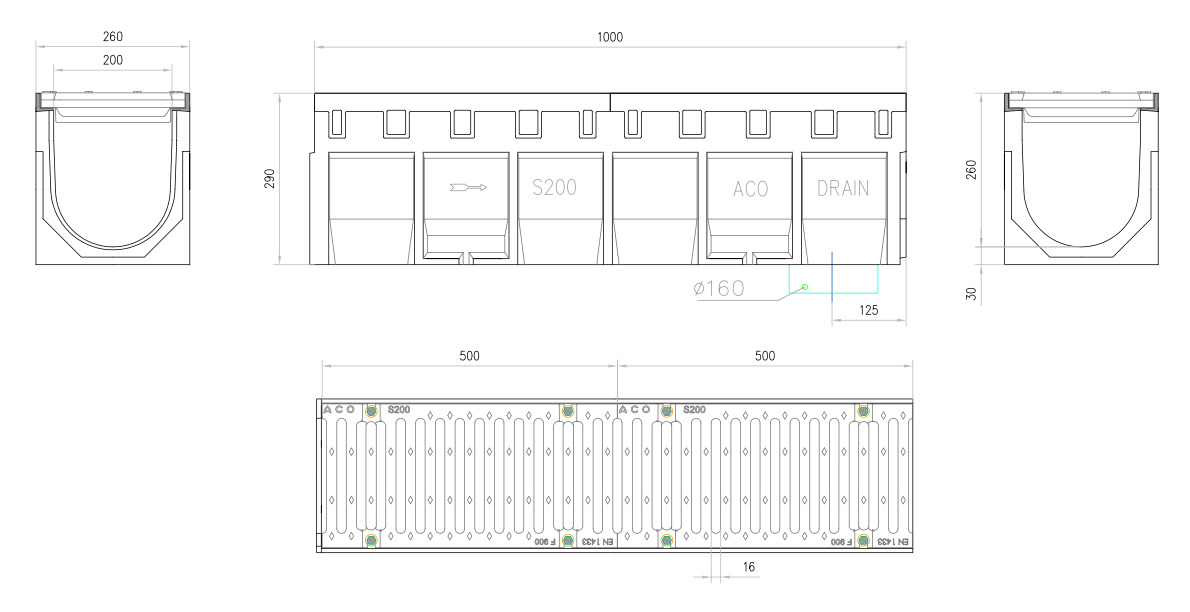

Draianage channel ACO S 200 H290 of polymer concrete, with grate type slotted of cast iron of load class F900 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 160. With an inner section of 415 cm² and U-shaped cross-section. Grate absorption area of ​​918 cm²/m. Total length 1000 mm, outer height 290 mm and outer width 260 mm. Nominal inner width 200 mm. Weight: 78,31 kg.
Item:00004271
