Description

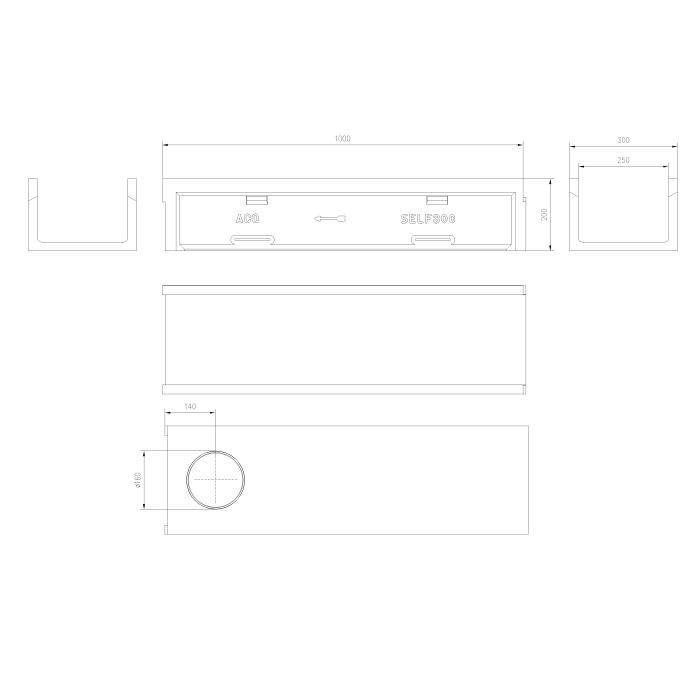

Drainage channel type ACO SELF 300 in Concrete Polymer without grating with load class C250 according to EN1433. Locking system by bolt and bar. Internal section 435 cm² with vetical knockout DN/OD 160. Total length 1000 mm, overall height 200 mm and overall width 300 mm. Nominal width 250. Weight: 30,3 kg.
Technical Specifications
Dimensions
- Flow rate (l/s):
- 25
- Internal section (cm²):
- 435
- Model:
- SELF 300
- Length (mm):
- 1000
- Width (mm):
- 300
- Height (mm):
- 200
- Weight (kg):
- 30,3
- Load class:
- C250
