CNL S 150 0.0 1000MM H220 DN/OD 160 F900 W/GR PAS CAST IRON

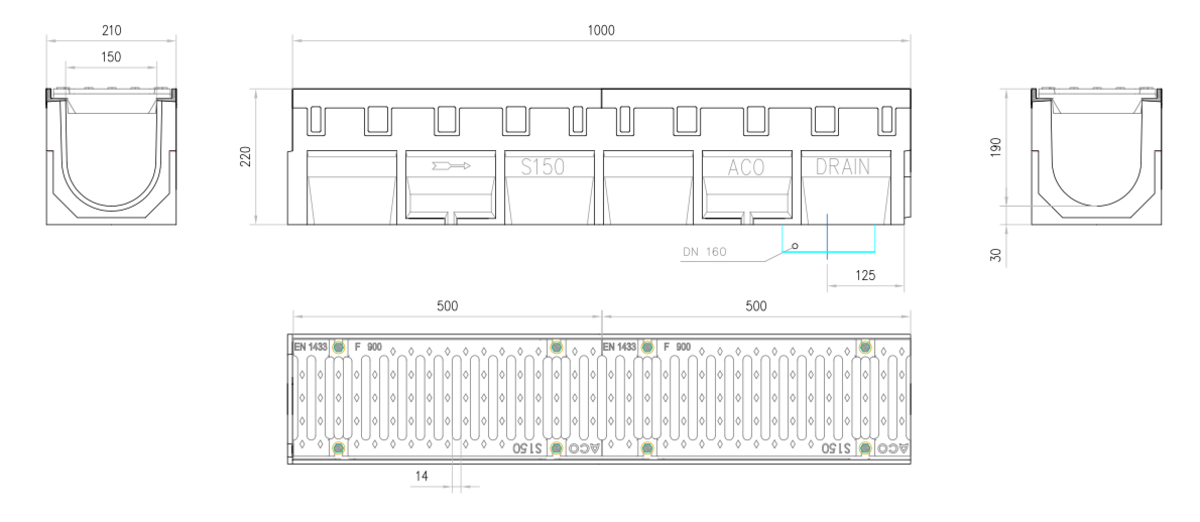

Draianage channel ACO S 150 H220 of polymer concrete, with grate type slotted of cast iron of load class F900 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 160. With an inner section of 220 cm² and U-shaped cross-section. Grate absorption area of ​​638 cm²/m. Total length 1000 mm, outer height 220 mm and outer width 210 mm. Nominal inner width 150 mm. Weight: 51,6 kg.
Item:00004121
