Description

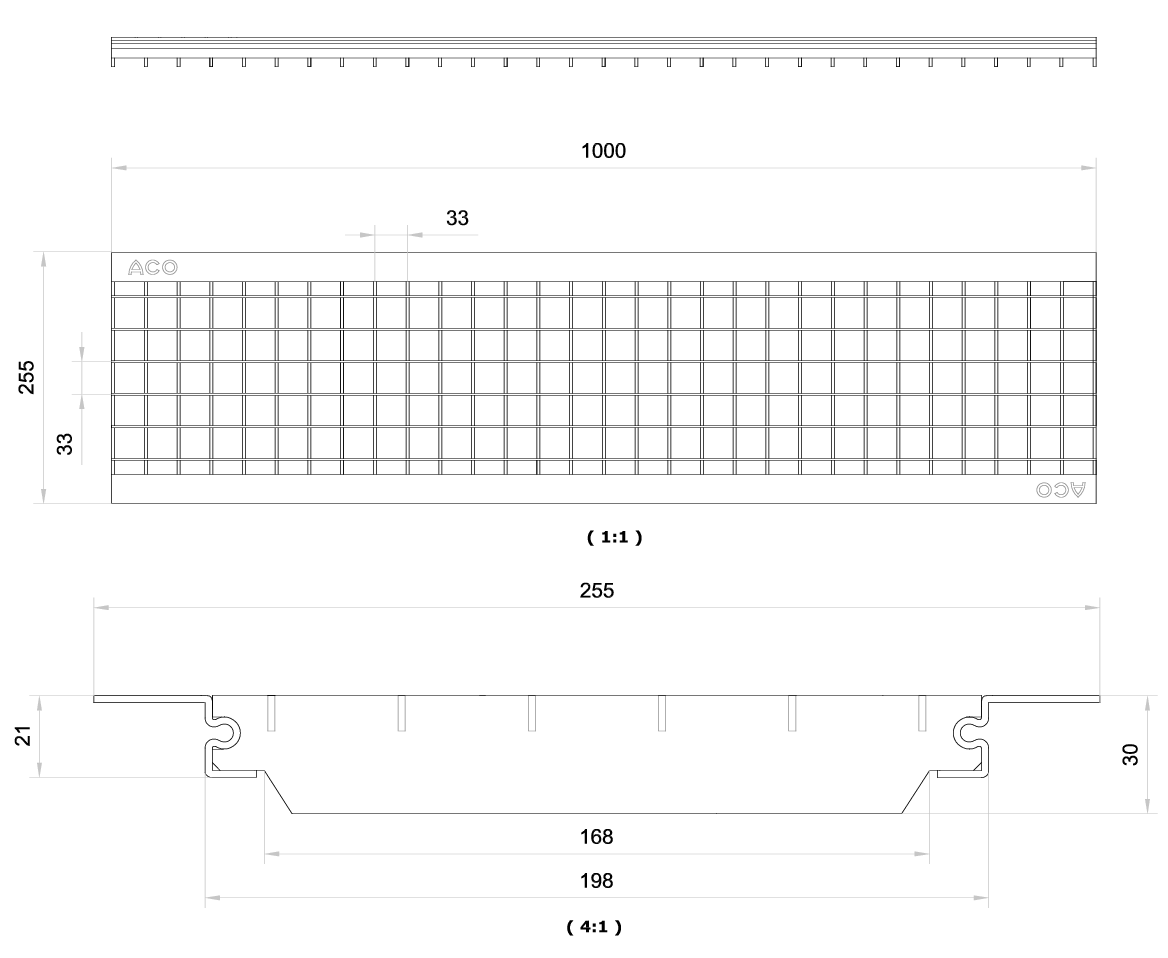

Grate type mesh in galvanised steel, with load class B125 in accordance with EN1433, for surface drainage channels type ACO N 200. Locking system ACO Drainlock®. Intake area of 1674 cm²/m. Lenght overall 1000 mm, external height 30 mm and external width 255 mm. Unit weight: 6,83 kg.
Technical Specifications
Dimensions
- :
- :
- :
- :
- :
- :
- :
Catalogs
Technical datasheets
